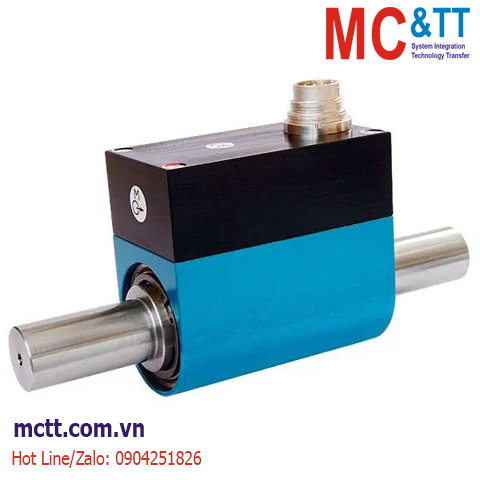

Cảm biến đo Momen xoắn trục quay không tiếp xúc Dual dải đo 0.5 / 5 - 2000 / 20000 Nm Lorenz DR-2508, DR-2508-P

Chia sẻ:
Mã sản phẩm: DR-2508, DR-2508-P
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Dual range torque sensors, rotating contactless with angle/speed measurement & cylindrical shafts from manufacturer & distributor Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc Dual dải đo 0.5 / 5 - 2000 / 20000 Nm Lorenz DR-2508, DR-2508-P

DR-2508, Digital Output Dual-Range Rotary Torque Sensor
The DR-2508 has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free. This unit operates with analog output.

Features:

  • Contactless Rotary Torque Sensor
  • Dual Range
  • Keyway Shafts
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Digital Output RS-485

DR-2508 - Specifications

Type Rotary
  Dual Range
Dual Range 1:10
Full Scale 0.5 Nm
  1 Nm
  2 Nm
  3 Nm
  5 Nm
  10 Nm
  20 Nm
  30 Nm
  50 Nm
  100 Nm
  200 Nm
  300 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
  10000 Nm
  20000 Nm
Max Speed 5000 RPM
  5500 RPM
  7000 RPM
  10000 RPM
  12000 RPM
  15000 RPM
Output RS-485
  Speed/Angle (TTL)
Precision ±0.10 % FS
Excitation 12 V - 28 V DC
Drive Side Round Shaft
Test Side Round Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Coupling (PDF Datasheet): 0.5 / 5..3 / 30 N·m
5 / 50..2000 / 20000 N·m
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: DR-2208, DR-2208-P: 080941a_DR-2208_en.pdf
DR-2508, DR-2508-P: 080943c_DR-2508_en.pdf
