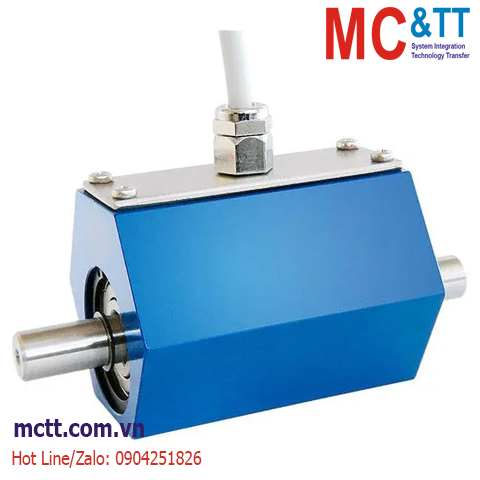

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.2 - 200 Nm Lorenz DR-2477, DR-2477-P

Chia sẻ:
Mã sản phẩm: DR-2477, DR-2477-P
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque transducer DR-2477, rotating contactless, low cost with cylindrical shafts from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.2 - 200 Nm Lorenz DR-2477, DR-2477-P

DR-2477, Rotary Torque Sensor
The DR-2477 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. This cost-effective unit is designed for stiff and floating sensor assemblies.

Features:

  • Contactless Rotary Torque Sensor
  • Round Shafts
  • Very Short Axial Length
  • Connection: 1m Integral Cable
  • Analog Output ±5V (±10V Option)

DR-2477 - Specifications

Type Rotary
Full Scale 0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  15 Nm
  20 Nm
  50 Nm
  100 Nm
  200 Nm
Max Speed 8000 RPM
  10000 RPM
Output ±5 V DC
  ±10 V DC
Precision ±0.25 % FS
Excitation 12 V - 28 V DC
Drive Side Round Shaft
Test Side Round Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Coupling (PDF Datasheet):

Stiff Sensor Assembly:
0.2..20 N·m
50..200 N·m

Floating Sensor Assembly:
0.2..20 N·m
50..200 N·m

PDF Datasheet: 080895a_DR-2477_en.pdf
