Cảm biến đo Momen xoắn trục quay không tiếp xúc 1 - 20000 Nm Lorenz DR-2212-R, DR-2212-R-P

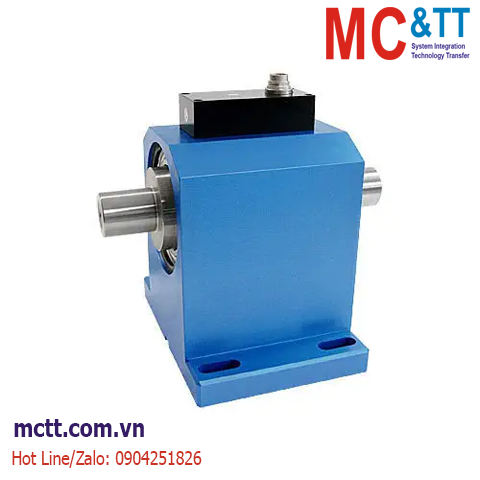

DR-2212, Shaft Rotary Torque Sensor
The DR-2212 and DR-2212-R torque sensor have a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free.

Features:

  • Contactless Rotary Torque Sensor
  • Round Shafts
  • Very Short Axial Length
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Foot Mounted
  • Accuracy Class 0.05% Available
  • Analog Output ±5V (±10V Option)

DR-2212 - Specifications

Type Rotary
Full Scale 1 Nm
  2 Nm
  5 Nm
  10 Nm
  15 Nm
  20 Nm
  30 Nm
  50 Nm
  100 Nm
  200 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
  10000 Nm
  20000 Nm
Max Speed 3500 RPM
  5500 RPM
  7000 RPM
  12000 RPM
  15000 RPM
Output ±5 V DC
  ±10 V DC
  Speed/Angle (TTL)
Precision ±0.10 % FS
  ±0.20 % FS
Excitation 12 V - 28 V DC
Drive Side Round Shaft
Test Side Round Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Coupling (PDF Datasheet): 0.1..20 N·m
50..1000 N·m
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 12-pin female cable connector and free soldered ends
Connection cable, 3 m, with 12-pin female angle cable connector and free soldered ends

PDF Datasheet: DR-2212-R, DR-2212-R-P: 080891c_DR-2212_en.pdf
DR-2512-R, DR-2512-R-P: 080893d_DR-2512_en.pdf
