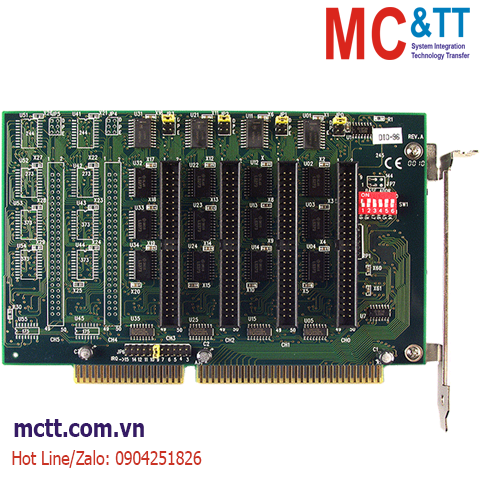

Card ISA 96 kênh vào/ra số DI/DO ICP DAS DIO-96 CR
Features
- Double side SMT , short card, power saving
- DIO-144 : 144 digital I/O lines
- DIO-96 : 96 digital I/O lines
- Emulate 8255 mode 0 (Basic Input/Output mode)
- Buffer output for higher driving capability than 8255
- Register compatible to 722 series
- Programmable interrupt handling
- DIO-144 : Six 50-pin Header
- DIO-96 : Four 50-pin Header
- Output status readback
Introduction
The DIO-144/96 provides 144/96 TTL digital I/O lines. The DIO-144/96 emulates 8255 mode 0 and has an increased output current of 15 mA (source) and 64 mA (sink) , allowing it to control LED, relay, etc. The DIO-144/96 consists of eighteen 8 bit bi-directional ports and 2 input lines for interrupt enable and interrupt. The 8 bit ports are named port A(PA),port B(PB) and port C(PC). The port C can be split into two four bit. All port are configured as inputs upon power-up or reset. The DIO-144/96 uses 4 consecutive I/O locations in I/O addressing space. The base address is selectable from 200 to 3FF hex. The interrupt signal can be connected to any of the interrupt levels 2 through 15 .
Applications
- Programmable voltage source
- Programmable current sink
- Harsh environment operation
- Process control
Click to view the Introduction of https://mctt.vn/isa-icp-das
Specifications
| Hardware |
| Connector |
50-pin box header x 4 |
| Digital Input |
| Channels |
96 (Bi-Direction) |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
96 (Bi-Direction) |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.1 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| Response Speed |
1 MHz (Typical) |
| PC Bus |
| Type |
ISA |
| Data Bus |
8-bit |
| Power |
| Consumption |
800 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
20 x 182 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| DIO-96 CR |
ISA Bus, 96-ch Digital I/O Board (RoHS) |
