Card ISA 32 kênh vào/ra số DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS DIO-64/3 CR

Chia sẻ:
Mã sản phẩm: DIO-64/3
Thương hiệu: ICP DAS
Tình trạng:

ISA Bus, 32-ch DI, 32-ch DO, 3x Timer/Counter Board

Liên hệ
Mô tả

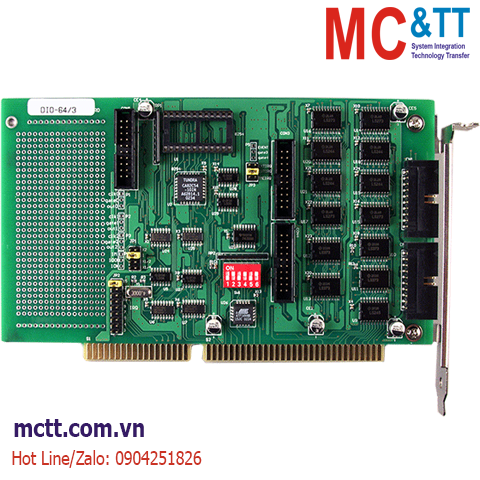

Card ISA 32 kênh vào/ra số DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS DIO-64/3 CR

Features

  • 32 DI lines
  • Buffer output for higher driving capability
  • 3 independent programmable 16 bit down counter
  • One 16-bit counter , one 32 bit counter with a 4 MHz time base
  • Breadboard area for add-on circuit
  • Backward compatible to 720 series card

Introduction

The DIO-64 provides 32 DI channels , 32 output channels and 6 counter/timer channels The DIO-64 consists of two 16-bit input port and two 16-bit output port . The user can use the DB-16P ( or 782 series ) to. Connect the input port (CN2,CN4) for isolation purpose. The user can use DB-16R (or 785 series) to interface to the output port (CN1,CN3) for relay control. There are four clock source , 2 M , 1 M , 500 k , 250 k, on the board . The user can choose any one by jumper setting .The user can take the frequency from the soldering pad. On board Timer/Counter provides 3-channel for frequency measure , event counting and pulse generation. The optional 8254 provides 3-channel for interrupt use.

Applications

  • Programmable voltage source
  • Programmable current sink
  • Harsh environment operation
  • Process control

Click to view the Introduction of https://mctt.vn/isa-icp-das

Specifications

Hardware
Connector 20-pin box header x 5
Digital Input
Channels 32
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 1.0 MHz
Trigger Mode Static Update
Digital Output
Channels 32
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Load Current Sink: 24 mA@ 0.8 V
Source: 15 mA @ 2.0 V
Response Speed 1.0 MHz
Timer/Counter/Frequency
Channels 3 (Independent x 3)
Type 5 V/TTL
Resolution 16-bit
Reference Clock Internal: 4 MHz
PC Bus
Type ISA
Data Bus 8-bit
Power
Consumption 500 mA @ +5 V
Mechanical
Dimensions (mm) 35 x 93 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

DIO-64/3     CR  ISA Bus, 32-ch DI, 32-ch DO, 3x Timer/Counter Board (RoHS)
