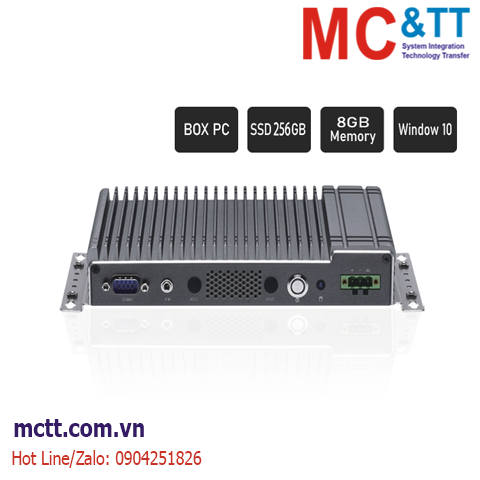

Máy tính công nghiệp không quạt Cimon CM-NB3011-D với Intel Core™ i3-1115G4E, 2xLAN, 1xCOM, 4xUSB
Thông số kỹ thuật
| |
CM-NB3011-D |
CM-NB5011-D |
CM-NB7011-D |
| CPU |
11th Intel® Core™ i3-1115G4E Dual Core, 2.2 GHz, 6M Cache (15W) |
11th Intel® Core ™ i5-1145G7E Quad Core, 1.5 GHz, 8M Cache (15W) |
11th Intel® Core ™ i7-1185G7E Quad Core, 4.4 GHz, 12M Cache (15W) |
| MEMORY |
1 x 260-pin DDR4 SO-DIMM up to 32G (Default 8GB) |
| GRAPHIC |
Intel® UHD graphics |
Intel® Iris® Xe graphics |
Intel® Iris® Xe graphics |
| STORAGE |
1 X M.2 2280 Key M 250 GB (PCIe x4 only) |
| Display Ports |
1 x DP++, 4096 × 2304 @ 60Hz
1 × HDMI 2.0, 4096 x 2160 @ 60Hz |
| SERIAL |
1 x RS232/RS422/RS485 (COM1) |
| ETHERNET |
2 × Gigabit Ethernet |
| USB |
4 x USB 3.0 |
| AUDIO |
1 × Line-in |
| OS |
Windows 10 IoT Enterprise |
| UTILITY PROGRAM |
UWF / Winclon (Recovery System) |
| INPUT VOLTAGE |
24VDC |
| Power Consumption |
20 W (Max. 50 W) |
| Dimension (W X D X H) |
227.6 x 132.6 x 42.0 mm (9.0 x 5.2 x 1.7 in) |
| Weight |
1.27 kg (2.80 lb) |
| Item |
Specifcation |
Standards |
Operating
Temperature |
-20 – + 60°C (-4 – +140°F) |
- |
Storage
Temperature |
-20 – + 80°C (-4 – +176°F) |
- |
Operating/
Storage Relative
Humidity |
10 – 90% Non-condensing |
- |
Shock
Resistance |
147 m/s2 (15 G), X,Y,Z directions for ±3 times (Total 18 times) |
IEC/EN 61131-2 |
Vibration
Resistance |
5–9 Hz Single amplitude: 3.5 mm
9–150 Hz Fixed acceleration: 9.8 m/s2
X,Y,Z directions for 10 cycles (approx. 100 min) |
IEC/EN 61131-2 |
Noise
Resistance |
Impulse, EFT/Burst, Surge, ±2 kV, 1 μ |
CIMON Standard |
Static Discharge
Resistance |
4 kV - Contact Discharges
8 kV - Air Discharges |
IEC 61000-4-2
IEC 61000-4-2 |
Thông tin đặt hàng
Intel Core i3-1115G4E CPU, 250GB, 8GB, DC24V, Win 10 IoT included
OPTIONS FOR CM-NB3000/5000/7000 SERIES
Model number format for upgrades: (OS)-(Language)-(RAM)-(SSD).
Example: Win10Pro (English), 16GB RAM, 500GB SSD: W10P-E-8-S5
*Default model doesn’t require this format.
**Model number for default OS is W10I.
***For OS options in languages other than English (E) and Korean (K), contact our sales team.
****Note: 64GB RAM is available - please contact CIMON for a quote.
| MODEL |
DESCRIPTION |
| 16GB RAM(16) |
16GB RAM |
| 32GB RAM(32) |
32GB RAM |
| 500GB SSD(S5) |
500GB M.2 NVMe SSD |
| 1TB SSD(S1T) |
1TB M.2 NVMe SSD |
| Windows 10 Pro(W10P) |
Windows 10 Pro instead of Windows 10 IoT Enterprise |
| Windows 11 Pro(W11P) |
Windows 11 Pro instead of Windows 10 IoT Enterprise |
| Linux Ubuntu(LU) |
Linux Ubuntu instead of Windows 10 IoT Enterprise |
| CM0-DR |
DIN Rail Bracket |
| CM0-WBCM(WB) |
WiFi+BT Combo Module |
