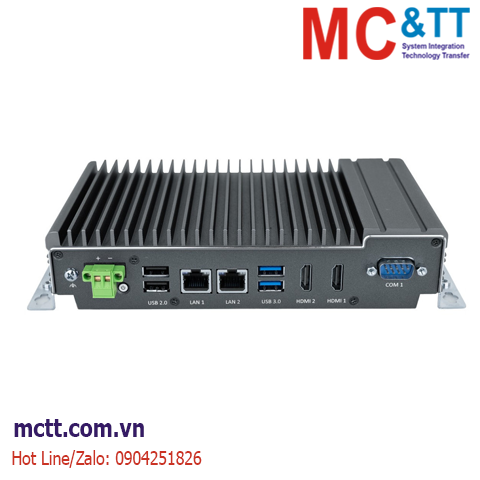

Máy tính công nghiệp không quạt Cimon CM-NB200-D với Intel Celeron J3455, 2xLAN, 2xCOM, 4xUSB
Industrial PC is a crucial business tool in the automation industry. An Industrial PC allows for the operation of various types of industry software while maintaining the rugged endurance required for handling harsh environments. The CM-NB200-D box features an Intel Celeron J3455 Quad Core processor and comes preloaded with the Windows 10 IoT Enterprise OS. It supports rich I/O interfaces, including two USB 3.0 ports, two USB 2.0 ports, two GbE LAN, and two HDMI 1.4b with resolution of 3840 x 2160 @30Hz.
Thông số kỹ thuật
| Technology |
| Category |
Industrial Computer |
| Computing |
| System Type |
Embedded Computers |
| CPU |
Intel Celeron |
| System Memory Configuration |
1xDDR3L-1600 SO-DIMM (Default 8GB) |
| Drive Storage |
250 GB SSD, 500GB SSD, or 1T SSD |
| Operating Systems |
Windows 10 loT Enterprise, Windows 10 Pro, Windows 11 Pro, or Linux Ubuntu |
| Serial Interface |
| Serial Ports |
1x RS-232/RS422/RS485 and 1x RS-232 |
| Interfaces |
| LAN Ports |
2 Gigabit Ethernet |
| Power |
| Power Consumption |
6W (Max : 18W) |
| Input Voltage |
9-24VDC |
| Mechanical |
| Dimensions |
200 (W) x 117.6 (D) × 43.4 (H) mm |
| Weight |
1.21 kg (2.67 lb) |
| Shock / Vibration |
50G peak / 2Grms@5~500 Hz |
| Ratings |
| Operating Temperature |
-20°C to 60°C |
| Storage Temperature |
-20°C to 80°C |
Thông tin đặt hàng
Intel Celeron J3455 CPU, 250GB, 8GB, DC24V, Win 10 IoT included
OPTIONS FOR CM-NB200
Model number format for upgrades: (OS)-(Language)-(RAM)-(SSD).
Example: Win10Pro (English), 16GB RAM, 500GB SSD: W10P-E-8-S5
*RAM size for this model is fixed at 8GB and cannot be upgraded.
**Default model doesn’t require this format.
***Model number for default OS is W10I.
****For OS options in languages other than English (E) and Korean (K), contact our sales team
| MODEL |
DESCRIPTION |
| 500GB SSD(S5) |
500GB SATA3 SSD |
| 1TB SSD(S1T) |
1TB SATA3 SSD |
| Windows 10 Pro(W10P) |
Windows 10 Pro instead of Windows 10 IoT Enterprise |
| Windows 11 Pro(W11P) |
Windows 11 Pro instead of Windows 10 IoT Enterprise |
| Linux Ubuntu(LU) |
Linux Ubuntu instead of Windows 10 IoT Enterprise |
| CM0-DR |
DIN Rail Bracket |
