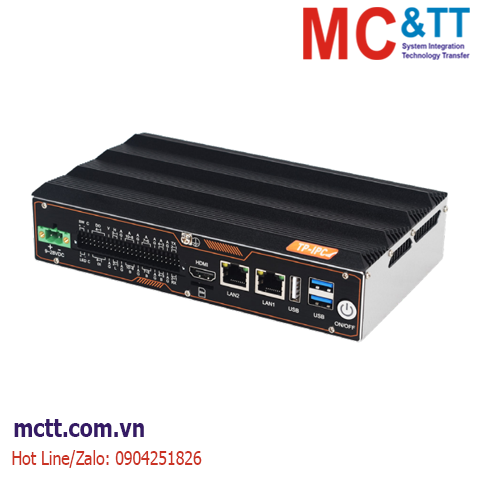

Máy tính nhúng công nghiệp không quạt (2 LAN + 10 COM) TP-IPC AEOLUS-SVA35-2L10C
AEOLUS-SVA35-2L10C is an ARM industrial edge controller optimized for industrial communication, intelligent control, and low-power edge computing scenarios.
Compared with traditional x86 industrial controllers, this ARM-based platform focuses on communication density, energy efficiency, and system integration. With 10-channel RS485, dual isolated CAN, rich GPIO, and stable Linux/Android support, it simplifies the deployment of field devices, sensors, and distributed control systems.
The fanless enclosed design, wide-range DC input, and industrial-grade isolation ensure long-term reliability in harsh environments such as factories, transportation systems, energy monitoring, and building automation.
Tính năng
- Rockchip RK3568 quad-core ARM Cortex-A55 processor with integrated AI acceleration
- Supports Linux and Android operating systems for flexible edge application development
- High-density industrial communication with 10 RS485 ports and dual isolated CAN bus
- 8-bit isolated GPIO (4 DI + 4 DO) for adaptable industrial I/O control
- Dual Gigabit Ethernet with optional 4G / 5G wireless expansion
- Wide-range DC power input for industrial power environments
- Fully enclosed fanless design for silent operation and long-term reliability
- Supports DIN-rail, wall-mount, and embedded installation
Thông số kỹ thuật
|
Model |
AEOLUS-SVA35-2L10C |
|
Supported OS |
Android 11, Linux(Dibian,Ubuntu) |
|
SoC |
ARM Rockchip RK3568B2, 4*Cortex-A55, Clock speed up to 2.0GHz |
|
RAM |
SDRAM |
SDRAM LPDDR4X-3200MHz on board |
|
Capacity |
4G |
8G |
|
Storage Device |
eMMC |
eMMC 5.1 64GB |
eMMC 5.1 64GB |
|
Form factor |
1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD |
|
I/O Interface |
COM |
Supports 10-channel 485 output (Channels 1 & 2 support RS232/RS485 switching) and digital capacitive isolation |
|
CAN |
Support 2 Channel CAN, and digital capacitive isolation |
|
Ethernet |
2 * Realtek GBE LAN Chip (10/100/1000 Mbps), RJ45; |
|
USB |
2* USB 3.0 (One is OTG)
1 * USB2.0
1* Internal USB 2.0 4PIN header |
|
Video |
1* HDMI 2.0 (Max Resolution: 4096×2304 @60Hz); |
|
SIM |
1* Nano SIM connected to M.2 B-Key, support 4G/5G wireless |
|
Power Supply |
DC 9-28V, 1* 2-PIN green connector, 5.08mm |
|
Feature I/O |
1* 8-bit GPIO on borad (4*DI + 4* DO) with optocoupler isolation, support DC 5-24V (with a max single-port current of 1A), support switch mode/ signal mode; 1* Remote Switch Button; 1* power-on auto-start DIP switch; |
|
Extended
Capabilities |
Additional
Internal Interface |
1* M.2 B-Key 3042/3052, USB 3.0 signal, support 4G/5G;
1* M.2 M-key SATA 3.0, support M.2 2242/2280 SSD;
1* Mini-PCIE Slot, USB 2.0 + PCIEx1, support BT, Serial Expension Card and so on;
1* TF Card Slot; |
|
Environment |
Operating Temp. |
-10 ~ 60 °C |
|
Storage Temp. |
-40 ~ 85 °C (-40~185 °F) |
|
Relative Humidity |
40°C @95%, Non-Condensing |
|
Physical
Characteristics |
Dimensions |
189.5* 43.5* 112.3 mm (W* H* D) |
|
Net Weight |
1.00 KG (The final weight please refer to exact specification) |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
Kích thước sản phẩm
CPU List
| CPU |
Configuration |
NPU |
GPU |
Multi-Media |
| RK3568 |
Quad-Core ARM Cortex-A55, up to 2.0GHz |
1 |
• ARM G52 2EE
• Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0,
Vulkan 1.1
• High performance dedicated 2D processor |
• Support 4K 60fps H.265/H.264/VP9 decoder
• Support 1080P 60fps H.265/H.264 encoder
• Support 8M ISP with HDR |
Phụ kiện mua thêm
| Optional Items |
Max Qty |
Description |
| 4G/5G Module |
1 |
Connected by M.2 interface |
| WiFi BT Module |
1 |
Supports Wi-Fi connectivity, with 2.4 GHz & 5.0 GHz dual-band; Connected by Mini-PCIe interface |
| M.2 M-Key SATA 3.0 SSD |
1 |
128G/ 256G/ 512G |
