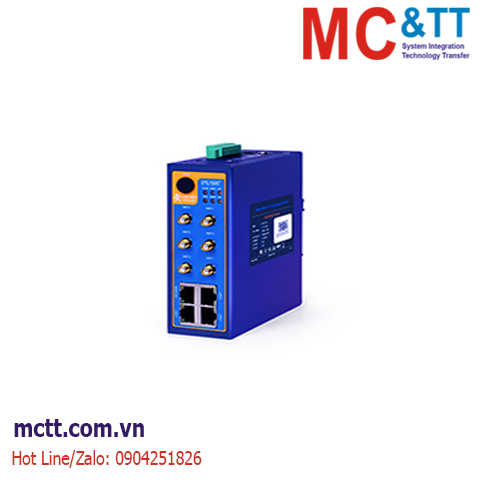

Router công nghiệp 5G USR-G816 của hãng PUSR.
Bộ định tuyến công nghiệp 5G USR-G816 là một nền tảng truyền thông không dây cố định/di động có hiệu suất cao với phần mềm tiên tiến cho phép kết nối an toàn và khả dụng cao cho các ứng dụng quan trọng. Thiết kế nhỏ gọn, chắc chắn tích hợp hai SIM, bộ chuyển mạch Gigabit 4 cổng, điểm truy cập Wi-Fi 802.11ac và 802.11n, RS232/485, mô-đun di động tích hợp hỗ trợ mạng WCDMA, 4G LTE và 5G sub-6 GHz NSA và SA. USR-G816 hỗ trợ phạm vi nhiệt độ hoạt động mở rộng từ -35℃ đến +75℃ và khá linh hoạt.
Tính năng
Stable And Reliable
Industrial grade design, Rugged enclosure with IP30 protection, optimized for DIN rail or shelf mounting.
Wide operating temperature.Wide voltage input,reverse polarity protection.
ESD,Surge,EFT protection.
Embedded hardware watchdog, self-recovers from malfunctions, maintaining high device availability.
Ultra Fast Connectivity
Global 5G (NSA/SA)/4G LTE network with dual SIM cards for backup between multiple carrier networks
Plug& play, supply lightning transmission via Gigabit Ethernet ports
Support 802.11b/g/n/ac Wave 2(Wi-Fi 5), allows 2.4G & 5.8G dual band concurrent data transmissionratesupto 867 Mbps (Dual Band, MU-MIMO),Access Point (AP), Station (STA),repeater
4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
Rich functions
Automated failover/failback backup among Ethernet, Cellular (dual SIM) and Wi-Fi
Secure transmission with VPN tunnels like PPTP/L2TP/enhanced OpenVPN
Supports APN/VPDN sim card.
Supports serial port transparent transmission, Modbus RTU to TCP, HTTP.
Supports ICMP keepalive check and heartbeat packet check to ensure the highest level of availability
Supports DDNS, static routing, easy access to routers and subnets under routers.
Firewalls, NAT, DMZ, port forwarding, and access restriction are supported.
Supports PUSR cloud platform to facilitate remote monitoring and central management of large-scaledevicenetworks.
Local and Remote management via Web GUI, SNMP
Embedded GNSS option for real-time asset tracking and location data-based applications
Supports serial ports (RS232/RS485), enabling you to scale up M2M applications.
Thông số kỹ thuật
| USR-G816 specifications |
|
Cellular
Interface |
Frequency |
5G NR sub-6 GHz (3GPP Rel-16)
Band(NA/NSA):
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/ 79;
4G LTE (CAT 19 DL / CAT 18 UL)
LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71;
LTE-TDD: B34/38/39/40/41/42/43/48;
LAA: B46; |
|
Maximum Transmission
Data Rate |
5G SA Sub-6: Max. 2.4Gbps (DL)/Max. 900Mbps (UL);
5G NSA Sub-6: Max. 3.4Gbps (DL)/Max. 550Mbps (UL)
LTE-FDD: Max. 1.6Gbps (DL)/Max. 200Mbps (UL) |
| Antennas |
4 × SMA-K Connectors (Center PIN: SMA Female) |
| SIM Slot |
2 x (3 V/1.8 V) mini-SIM(2FF) Push-push type slot
(SIM2 can be customized with a built - in eSIM) |
|
Ethernet
Interface |
WAN |
1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5 KV RMS |
| LAN |
3 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5 KV RMS |
| |
PWR |
red, always on after powered on |
| WORK |
green, blinking every 1second when the router is ready and working properly |
| NET |
Mobile network type LEDs
NET lights on after device is connected to the network. Green stands for 5G, green and red for 4G, and red for 3G |
| SIG |
Mobile signal strength indication LED
Green represents excellent signal, two-color light represents good signal, red represents poor signal |
| WLAN |
always solid on when WiFi is enabled and working properly |
| WAN |
LED blinking When Connection established and data is being transferred over this port. |
| LAN |
LED blinking When Connection established and data is being transferred over this port. |
|
Wi-Fi
Interface |
Antennas |
2 × SMA-K Connectors (Center PIN: SMA Female) |
| MIMO |
2×2 |
| Standards |
Concurrent dual-band 802.11a/n/ac (5.8GHz) and 802.11b/g/n (2.4GHz) |
| Modes |
AP/AP+STA/AP+WDS repeater |
| Data speed |
Up to 1733Mbps wireless operation rate at 5.8GHz |
| Security |
Wi-Fi security with WPA-PSK, WPA2-PSK, Mixed WPA/WPA2-PSK, WPA2-PSK+CCMP |
| Transmission distance |
200 meters by line of sight. Actual transmission distance depends on environment of the site. |
|
GNSS
(Optional) |
Antenna |
1 × SMA-K Connector (Center PIN: SMA Female) |
| Technology |
GPS, GLONASS, BeiDou, Galileo |
| Protocol |
NMEA 0183 |
| Power Supply |
Adapter |
DC 12V/2A |
| Connector |
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or industrial terminal block(V+,V-),reverse polarity protection |
| Input voltage range |
DC9-36V |
| Power consumption |
Average current 630mA@12V and the maximum current 1.6A@12V |
| Serial Interface |
Numbers |
1 × RS485/RS232 |
| Connector |
Terminal block |
| Baud Rate(bps) |
1200,2400,4800,9600,19200,38400,57600,115200,230400,460800(only 485) |
| Signal definition |
RS232: TXD, RXD, GND RS485: A, B, GND |
| Data bits |
7,8 |
| Stop bits |
1,2 |
| Parity |
NONE, ODD, EVEN |
| Physical Characteristics |
Casing material |
Metal shell, ingress protection IP30 |
| Dimensions |
125.0*103.0*45.0mm (L*W*H, antenna pedestal, terminal block and DIN Rail are not included) |
| Installation |
Desktop, wall mounting and DIN-rail mounting |
| EMC |
Static IEC61000-4-2, level 3
Pulsed Electric Field IEC61000-4-4, level 3
Surge IEC61000-4-5, level 3 |
| Operating Temperature |
-35℃ ~ +40℃ with adapter, after the PUSR test and evaluation, the product's actual operating temperatModem LTE Cat 4 can reach-35℃ ~ 75℃. |
| Storage Temperature |
-40℃～+125℃ (Non-condensing) |
| Relative Humidity |
5%~95% (Non-condensing) |
| Others |
Reload button |
1 × Reload |
| TBD |
Debug interface (TTL Level) |
| Ground protection |
Screw |
| Built-in |
Watchdog |
| Software |
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| VPN |
LT2P, PPTP,PPTP,L2TP,IPsec,Openvpn,GRE, VXLA |
| Security |
Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering (IP& MAC & Domain) |
| Management |
Web UI, PUSR cloud |
| Reliability |
WAN Failover, Dual SIM Backup |
| Serial port |
Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP) |
| Certificate |
In progress |
CE, *FCC, *WEEE, RoHS, *RCM, *WPC |
