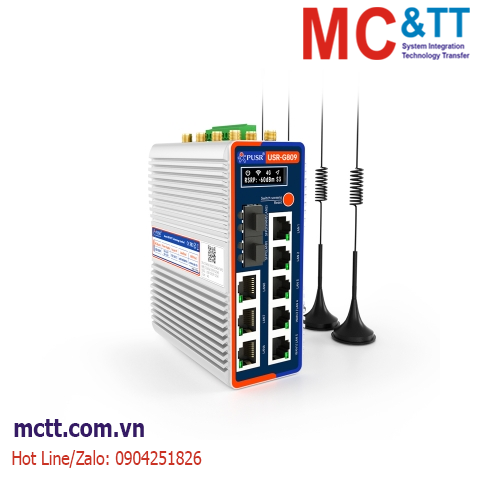

Router công nghiệp 4G với 2 cổng WAN/ LAN + 6*LAN + 2*SFP Wi-Fi dual-band VPN USR-G809

Router công nghiệp 4G với 2 cổng WAN/ LAN + 6*LAN + 2*SFP Wi-Fi dual-band VPN USR-G809

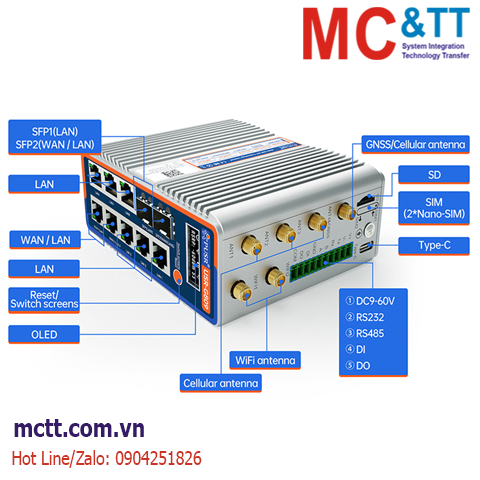

The G809 series is a new generation of flagship routers for industrial applications. Equipped with high-end Qualcomm main control, Gigabit（2*SFP+8*RJ45). It supports optional 4G cellular network boards, with 1GB RAM, 8GB storage, and Python secondary development capabilities. Featuring Qualcomm dual-band Wi-Fi 6 and rich hardware interfaces, it includes: 1*RS232 + 1*RS485 dual serial ports, 1*DI/DO, dual SIM redundancy, GNSS positioning, OLED display, USB port, and SD interface.

Designed to industrial standards, the product operates in -40 ° C~75 ° C temperatures, accepts DC 9-60V power, and has robust hardware protection. Tested in harsh environments, it features dual hardware/software watchdogs and self-recovery for reliable performance across industries.

The product features standard DIN-rail mounting and a compact design. It applies to smart factories, intelligent manufacturing, industrial robotics, smart warehousing, drones, smart healthcare, vehicle networking, industrial automation, smart transportation, smart cities, smart industries, security & criminal investigation, and driverless scenarios.

Tính năng

• 1GB memory +8GB large storage, Python；
• Support PPTP/L2TP/IPSec/OpenVPN/GRE/VXLAN/DMVPN/Wireguard；
• Support cellular network to lock frequency band and frequency point、PCI;  Supports TCP/UDP/Modbus/MQTT/HTTP protocol serial port transmission；
• Support edge collection computing and report through MQTT+JSON format；
• Support cloud services such as PUSR Cloud Monitoring/Alibaba Cloud；
• Support SNMP/ SMS/alarm/monitor/DDNS and other network services；
• Support key service information of OLED display, and support two open custom OLED display content；
• Supports failover, dual SIM/dual WAN/wireless WIFI mutual backup capability, and always keeps the network offline； Supports GPS positioning, and supports displaying location information on the cloud and reporting to private servers； Supports static routing, policy routing, and dynamic routing protocols；
• Supports IPV6；
• Support ICMP keep-alive detection, heartbeat packet detection and other functions to ensure stable operation of the equipment；
• Supports security firewall, DNAT, SNAT, DMZ, port forwarding, access restriction, etc；
• Supports remote networking and boundaryless remote access terminal capability；
• Supports opening the built-in web page of the router through the PUSR Cloud, so that you can easily access the router without a dedicated network or public IP；
• Support network IO management and remote control of switches；
• Supports APP installation；
• Support RTC clock；
• Supports data acquisition breakpoint continuation and GNSS breakpoint continuation.

Thông số kỹ thuật

Download

Datasheet

User Manual

Thông tin mua hàng
