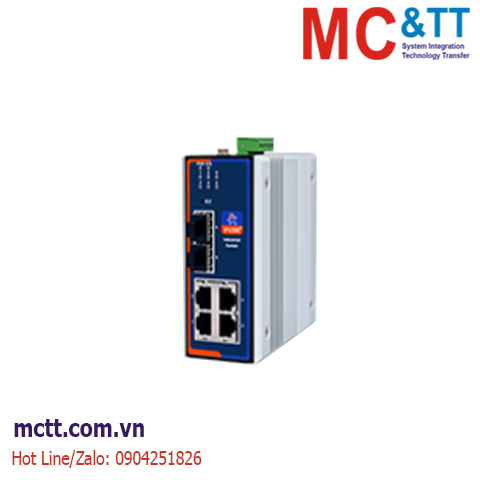

Switch công nghiệp quản lý 4 cổng Gigabit Ethernet + 2 cổng Gigabit SFP USR-ISG1204S-SFP
Industry D IN-Rail WEB Managed Industrial Switches at most can support 2 100/1000BaseX SFP ports + 4 10/100/1000BaseT ports, which are specially designed for harsh environments, providing economic solutions for industrial Ethernet connections. The working temperature of these switches is -40°C~ +85°C. Security Industry DIN-Rail WEB Managed Industrial Switches adopt redundant dual power inputs, 9.6~60VDC and 18~30VAC, DIN-Rail mounted. With rugged aluminumalloy housing, IP40 protection class, these switches passed the high level tests of EMI/EMC. And all the models have gone through strict aging test, meeting the requirements of security industry
Tính năng
- All 1000M ports
- 14Gbps backplane bandwidth
- Wide and varied power supply range
- Non-rust aluminum alloy housing and torx screws
- Support WEB management
- All ports support wire-speed forwarding and automatic turnover, supporting long-distance transmission
- Support one-click port isolation and self-recovery ring network
- Support one-click factory settings restoration and restart
- Support uploading and downloading configuration files
- Lightning protection: power supply ±4KV, RJ45 port ±4KV
- IP40 protection class
- Small and easy to install, plug and play without configuring
- Fanless design, wide working temperature and quiet operation
- MTBF ≥ 300,000h
Thông số kỹ thuật
| Switch Properties |
Backplane Bandwidth: |
14Gbps |
| Switch Architecture: |
Store-Forward |
| MAC Table Size: |
2K |
| Buffer Size: |
1Mbit |
| Exchange Rate: |
1,488,000 pps/1000M port |
| Software Functions |
Management Mode |
WEB based on HTTP, SNMPv1, SNMPv2 |
| Diagnosis Mode: |
Indicator Light, Journal File, Port Mirroring, TRAP |
| Redundancy: |
RSTP |
| DIP Switch: |
VLAN, RSTP |
| Others: |
4K VLANS, IPv4 Multicast, storm control, support JumboFrame |
| Power Parameters |
Connections: |
5-PIN terminal block |
| Input Voltage: |
9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs |
| Overload Current Protection |
Supported |
| Reverse Polarity Protection: |
Supported |
| Physical Performance |
Installation: |
DIN-Rail Mounted |
| Housing: |
Aluminum Alloy Housing |
| Protection Class: |
IP40 |
| Dimensions (W×H ×D) |
50mm × 110mm × 105mm |
| Weight: |
<0.75kg |
| Mechanical Characteristics |
Vibration: |
IEC 60068-2-6 |
| Shock: |
IEC 60068-2-27 |
| Free-fall: |
IEC 60068-2-31 |
| Circuit Board: |
Approved by IPC |
| Environment Limits |
Storage Temperature |
-40°C ~ +85°C |
| Operating Temperature: |
-40°C ~ +85°C |
| Ambient Relative Humidity: |
5% ~ 95% (Non-condensing) |
| Electromagnetic Characteristics |
EMI: |
FCC 47 CFR Part 15 Class A
EN55032 Class A
EN55035 Class A |
| EMC: |
IEC(EN)61000-4-2, Class 4
IEC(EN)61000-4-3, Class 3
IEC(EN)61000-4-4, Class 4
IEC(EN)61000-4-5, Class 4
IEC(EN)61000-4-6, Class 3
IEC(EN)61000-4-8, Class 5 |
| Industrial Certification and Test |
Product Safety: |
EN 62368-1 |
| EMC: |
EN 55032
EN 55035
EN IEC61000-3-2
EN 61000-3-3
FCC Part 15 Subpart B Class A |
| Others: |
Test Report from Ministry of Public Security, NetworkAccessLicense, RoHS |
Download
Datasheet
Thông tin đặt hàng
| USR-ISG1204S-SFP |
6-Port DIN-Rail WEB Managed Industrial Switch, support 2 100/1000BaseX SFP ports (SFP module not included) + 4 10/100/1000BaseT ports. IP40 protection class. Operating temperature -40°C ~+85°C. Dual redundant power inputs, 9.6 ~ 60VDC & 18 ~ 30VAC |
