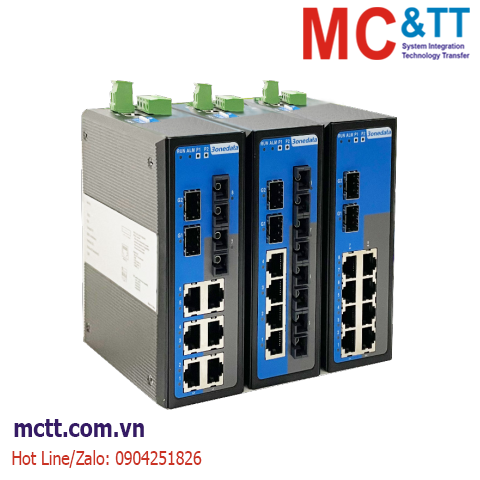

Switch công nghiệp 8 cổng Ethernet + 2 cổng Gigabit SFP 3Onedata IES2010-8T2GS-2P48
IES2010 series are 10-port 100M/Gigabit layer 2 unmanaged industrial Ethernet switches. This series provides 4 products and supports a variety of interfaces including 100M copper ports, 100M fiber ports, and Gigabit SFP slots. They adopt DIN-Rail mounting or wall mounting to meet the requirements of different application scenes.
DC power supply input consists of two independent power supply circuits, which can ensure device’s normal operation when one fails. The design of DIP switch could implement device factory setting recovery. When DC power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields
Tính năng

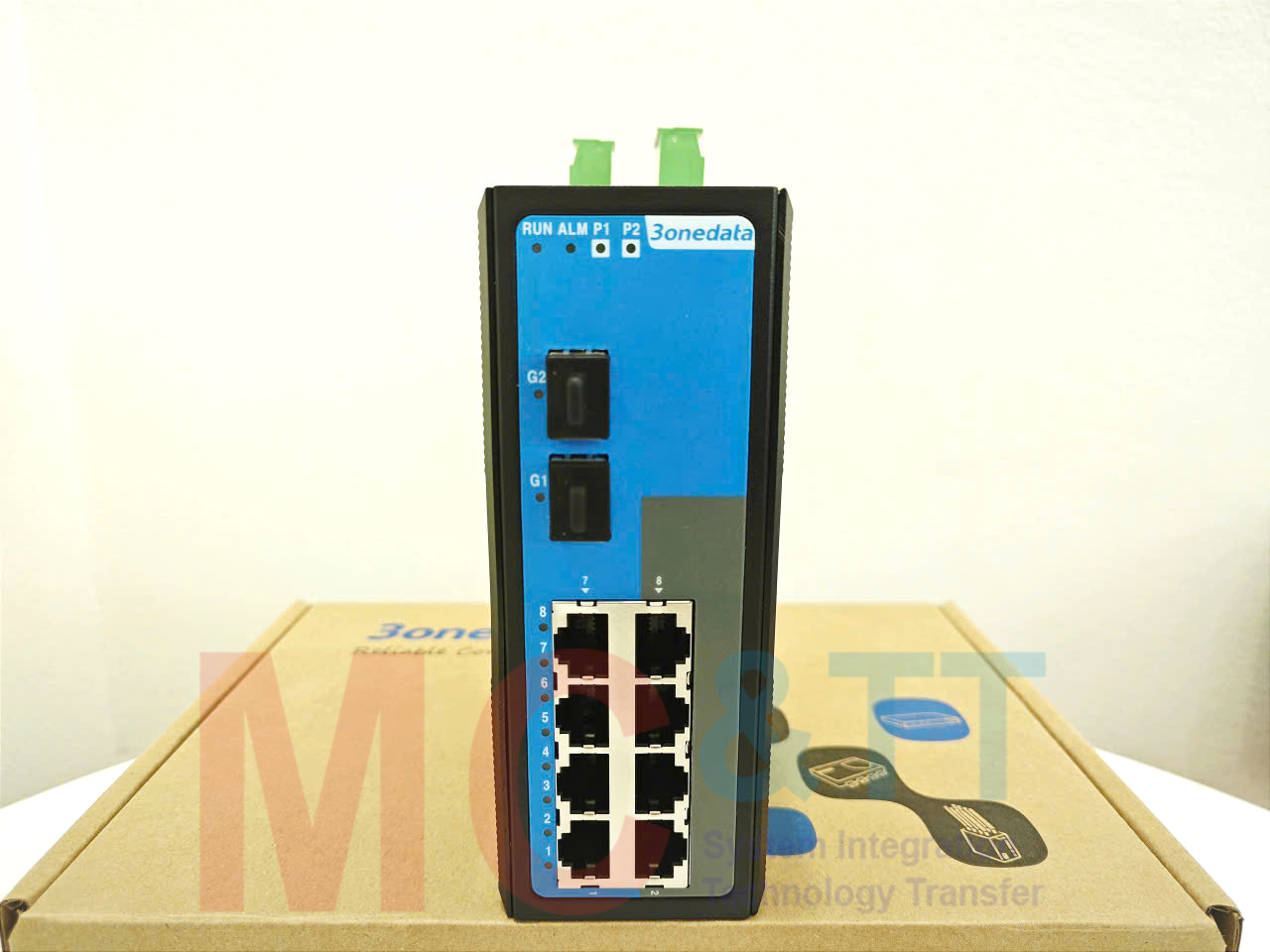

- Support 2 Gigabit fiber ports (SFP slot) and 8 optional 100M Ethernet fiber/copper ports
- Gigabit bandwidth can realize transmitting large amounts of video, voice and data with high performance and high speed
- DC Product supports dual power input, with input voltage of 12/24/48VDC (12~60VDC).
- AC Product supports input voltage of 100~240VAC/DC
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
| Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
|
| Interface |
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/ MDI-X Autotunning
100M fiber port: 100Base-FX, optional SC/ST/FC
SFP slot: 1000Base-X SFP
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output |
| Switch Property |
Transmission mode: store and forward
MAC address: 4K
Cache: 2Mbit
Backplane bandwidth: 9.6G
Switch time delay: <10μs |
| Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
| Power Supply |

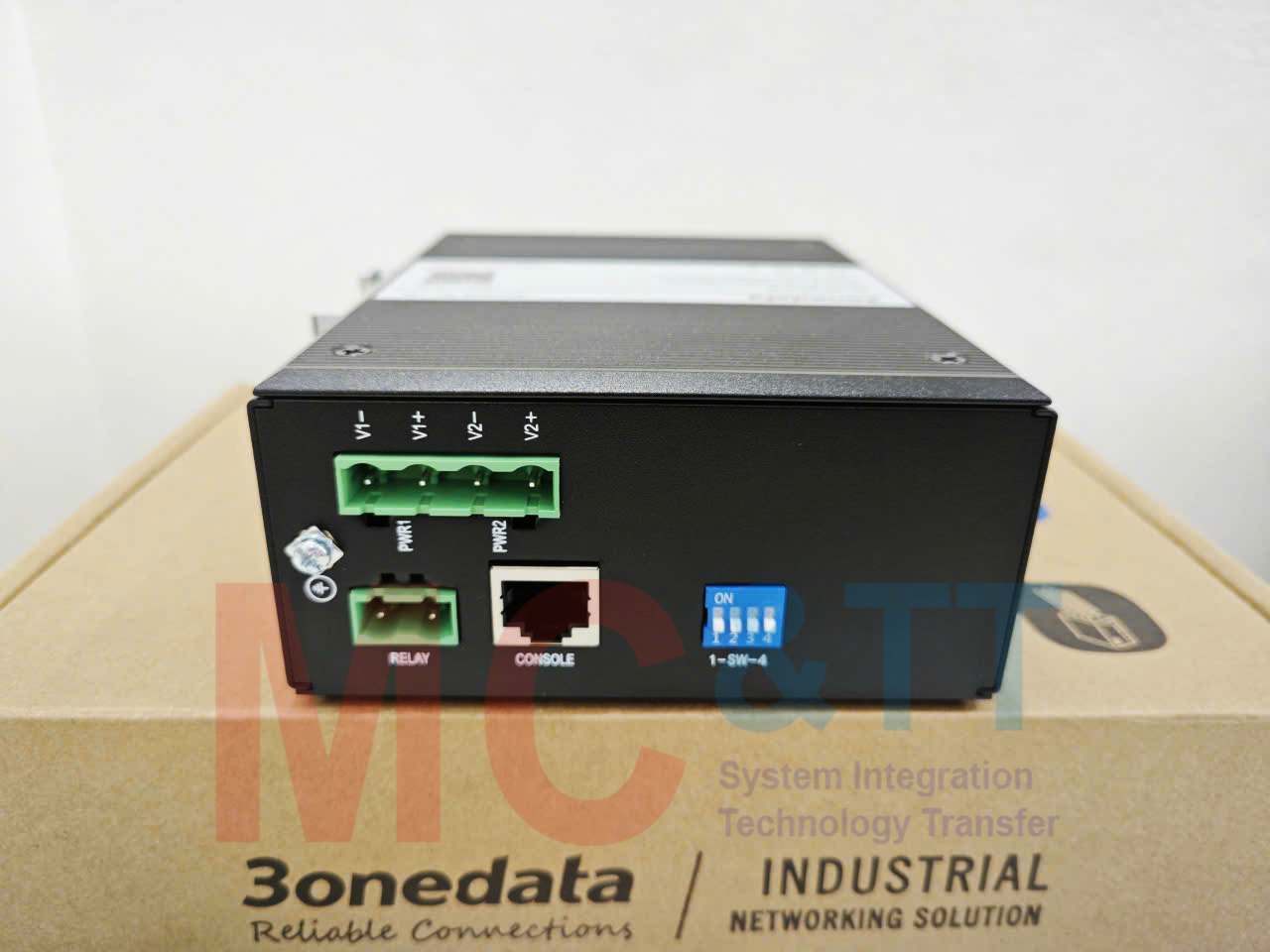

DC power: 12/24/48VDC (12~60VDC), adopt 4-pin 7.62mm pitch terminal blocks, redundant dual power input, built-in overcurrent protection, support non-polarity
AC power: 100~240 VAC/DC, with built-in 5.0A overcurrent protection |
| Mechanical |
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Dimension (W x H x D): 53mm×138mm×110mm
Weight: 641g |
| Environmental |
Operating Temperature: -45°C to 75°C
Storage Temperature: -45°C to 85°C
Relative Humidity: 10 to 95% (non-condensing) |
| DC Product Industrial Standard |
IEC 61000-4-2 (ESD, electronic static discharge), Level 4
Air discharge: ± 15kV
Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 4
Power supply: ±4kV
Ethernet interface: ±2kV
IEC 61000-4-5 (Surge), Level 4
- Power supply: common mode ±4kV, differential mode±2kV
- Ethernet port: ±2kV
- Relay: common mode±4kV, differential mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
|
| AC Product Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode ±2kV, differential mode ±1kV
Ethernet port: common mode ±2kV, differential mode ±1kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-31
Vibration: IEC 60068-2-6
|
| Certification |
CE, FCC, RoHS |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
2*1000M SFP(SFP slot) + 8*10/100Baes-T(X) (RJ45), dual power supply: 12～60VDC
