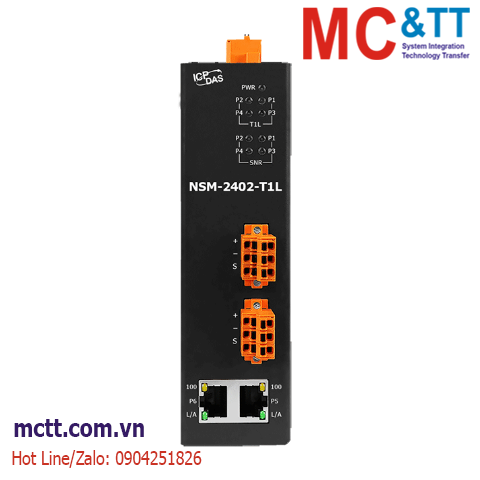

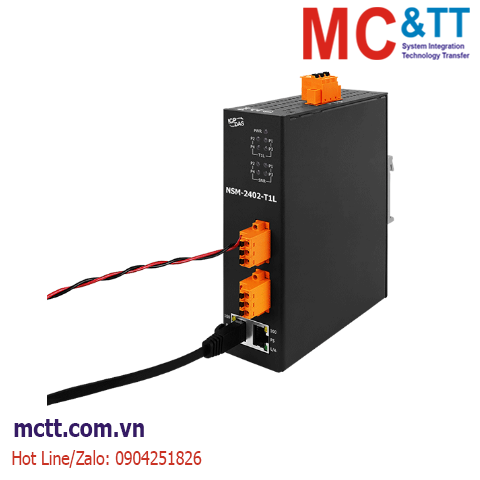

Switch công nghiệp 2 cổng Ethernet RJ45 + 4 cổng T1L Ethernet ICP DAS NSM-2402-T1L CR
Feature
- 2-port RJ45 (10/100 Base-TX)
- Supports Daisy-chain Topology
- Supports LAN bypass
- 4-port T1L (10 Base-T1L)
- Independent LED indicators for SNR Quality
- Up to 1000 m communication distance
Introduction
The NSM-2402-T1L is a 2-port 10/100 Mbps and 4-port 10 Mbps T1L Ethernet Switch. The new architecture provides a communication distance far beyond that of traditional Ethernet, greatly expanding the scope of application.
Application
Specifications
| LED Indicators |
| Status |
PWR, T1L L/A, T1L SNR |
| Ethernet |
| Ports |
2 x 10/100 Base-Tx |
| Standards |
IEEE 802.3 for 10 Base-T,
IEEE 802.3u for 100 Base-TX, |
| LAN bypass |
Yes |
| T1L Communication |
| Ports |
4 x 10 Base-T1L |
| Standards |
IEEE802.3cg |
| Transmission Distance |
1000 m (max.) |
| Connector |
3-pin Spring Clamp |
| Cable Type |
Shielded Twisted Pair (STP), 18 AWG ~ 24 AWG |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC |
| Consumption |
2.5 W (max.) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
44 x 172 x 139 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 ℃ |
| Storage Temperature |
-40 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| NSM-2402-T1L CR |
Unmanaged 2-port 100 Mbps and 4-port T1L Single Pair Ethernet Switch (RoHS) |
