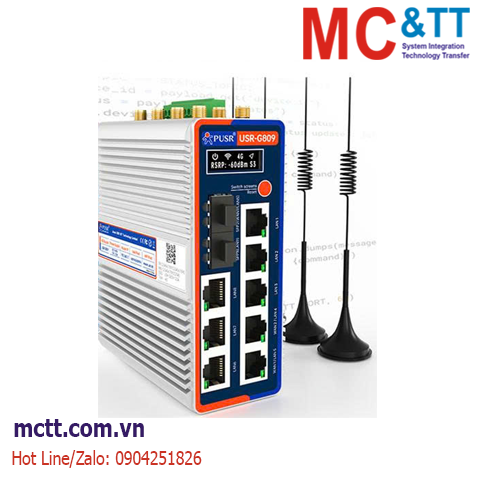

Router công nghiệp 4G + Wifi 6 USR-G809 của hãng PUSR.
The G809/G807 series is a new generation of flagship routers for industrial applications. Equipped with high-end Qualcommmaincontrol, it offers two series: 5 Gigabit Ethernet ports and Gigabit（2*SFP+8*RJ45）. It supports optional 4G cellular network boards, with1GBRAM, 8GB storage, and Python secondary development capabilities. Featuring Qualcomm dual-band Wi-Fi 6 and rich hardware interfaces, it includes: 1*RS232 + 1*RS485 dual serial ports, 1*DI/DO, dual SIM redundancy, GNSS positioning, OLED display, USB port, andSDinterface. Designed to industrial standards, the product operates in -40 ° C~75 ° C temperatures, accepts DC 9-60V power, and has robust hardware protection. Tested in harsh environments, it features dual hardware/software watchdogs and self-recovery for reliableperformance across industries. The product features standard DIN-rail mounting and a compact design. It applies to smart factories, intelligent manufacturing, industrial robotics, smart warehousing, drones, smart healthcare, vehicle networking, industrial automation, smart transportation, smart cities, smart industries, security & criminal investigation, and driverless scenarios.
Tính năng
Stable And Reliable
Aluminum alloy shell, IP40 protection: reduce the impact of dust;
Industrial wide temperature : -40℃~+75℃ design;
The voltage input is DC 9-60V, and the power supply reverse protection is available；
EMC National standard 3B hardware high protection level, specially designed for harsh industrial environment;
Built-in hardware and software watchdog, self-detection and self-repair of faults to ensure system stability;
Standard rail installation method Standard
Rich in interfaces
Support Gigabit （2*SFP+8*RJ45）;
Support 4G Global Band;
Support TF and USB peripheral access;
Link redundancy design, dual SIM card slots;
1*RS232/RS485+1*RS485；
1*DI+1*DO；
Supports Qualcomm dual-band Wi-Fi6 (AP/STA/Relay/Bridge)；
Powerful
1GB memory +8GB large storage, Python；
Support PPTP/L2TP/IPSec/OpenVPN/GRE/VXLAN/DMVPN/Wireguard；
Support cellular network to lock frequency band and frequency point、PCI;
Supports TCP/UDP/Modbus/MQTT/HTTP protocol serial port transmission；
Support edge collection computing and report through MQTT+JSON format；
Support cloud services such as PUSR Cloud Monitoring/Alibaba Cloud；
Support SNMP/ SMS/alarm/monitor/DDNS and other network services；
Support key service information of OLED display, and support two open custom OLED display content；
Supports failover, dual SIM/dual WAN/wireless WIFI mutual backup capability, and always keeps the network offline；
Supports GPS positioning, and supports displaying location information on the cloud and reporting to private servers；
Supports static routing, policy routing, and dynamic routing protocols；
Supports IPV6；
Support ICMP keep-alive detection, heartbeat packet detection and other functions to ensure stable operation of the equipment；
Supports security firewall, DNAT, SNAT, DMZ, port forwarding, access restriction, etc；
Supports remote networking and boundaryless remote access terminal capability；
Supports opening the built-in web page of the router through the PUSR Cloud, so that you can easily access the router without a dedicated network or public IP；
Support network IO management and remote control of switches；
Supports APP installation；
Support RTC clock；
Supports data acquisition breakpoint continuation and GNSS breakpoint continuation.
Thông số kỹ thuật
| Hardware Specifications |
| Cellular |
4G Global frequency bands |
TDD-LTE:Band 34/38/39/40/41
FDD-LTE：Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
WCDMA:B1/2/4/5/6/8/19
GSM/GPRS/EDGE：B2/3/5/8 |
| Antenna interface |
2* Standard SMA-K interface (outer screw and inner hole) |
| SIM card slot |
2 *None-SIM |
| Ethernet Interface |
Number of network ports |
Version with 10 LAN ports
2*WAN/LAN+6*LAN+2*SFP;
SFP: 1*WAN/LAN+1*LAN |
| Network port specifications |
RJ45：10/100 /1000Mbps，IEEE 802.3
SFP：Gigabit optical port
It has 1.5KV network isolation transformer protection |
| Connecting Terminal |
V+，V- |
Built-in power reverse protection |
| GND |
Ground terminal； |
| Tx |
RS232 |
| Rx |
RS232 |
| A |
RS485 |
| B |
RS485 |
| DI1 |
Digital input port |
| DO1 |
Digital output port |
| Com |
Common teminal |
| Wi-Fi6 |
Antenna interface |
2 * Standard RP-SMA-K interface (External screw and internal pins) |
| MIMO |
2×2 |
| Standard and frequency band |
Support IEEE802.11b/g/n/ac/ax，2.4GHz&5.8G |
| Wireless functionality |
AP / STA/ Relay / Bridge |
| The rate of the theory |
2976Mbps(5GHz:2402Mbps,2.4GHz:574Mbps) |
| Secure encryption |
No encryption/mixed-psk/psk/psk2/psk2+ccmp |
| Transmission distance |
Open outside / no obstruction, coverage radius up to 200 meters;
Indoor office environment/barrier, coverage radius up to 40 meters
Note: The measured rate is affected by the field environment, please take the measuredrate as the standard |
| Theoretical device capacity |
2.4G+5.8G:256 |
| Positioning Function |
Antenna interface |
1 * Standard SMA-K interface (external screw and internal hole) |
| Positioning criteria |
GPS |
| Power Supply Specifications |
Adapter |
DC 12V/2.5A |
| Power supply interface |
Power supply for industrial terminals with anti-polarity protection |
| Scope of power supply |
DC 9-60V |
| Serial Port |
RS485/RS232 |
Industrial terminal |
| Baud rate（bps） |
1200,2400,4800,9600,19200,38400,57600,115200,230400 |
| Data bit |
7,8 |
| Stop bit |
1,2 |
| Check bit |
NONE,ODD,EVEN |
| Software Functions |
VPN |
PPTP、L2TP、IPSec、OpenVPN、GRE、VXLAN、Wireguard |
| Physical Characteristics |
Hull |
Aluminum alloy shell, dustproof grade IP40 |
| Size； |
118.0*96.0*48.7mm（L*W*H，Parts and antenna seats are not included） |
| Way to install |
Guide rail installation, horizontal desktop placement |
| EMC |
National standard 3B grade |
| working temperature |
-40℃ ~ +75℃ |
| Storage temperature |
-40℃～+85℃（No condensation） |
| Working humidity |
5%~95%（No condensation） |
| Other |
Reset/Switch Screens |
Long press for 5-15 seconds to restore factory settings, and short press for 1-3 secondstoswitch screens. |
| USB |
Supports USB flash drives to expand storage space |
| SD card slot |
Support SD card to expand storage space |
| RTC |
RTC |
| Ground protection |
Grounding screws |
| Built-in watchdog |
Supports self-detection of equipment and self-recovery of faults |
| OLED |
Display the basic information of the router |
