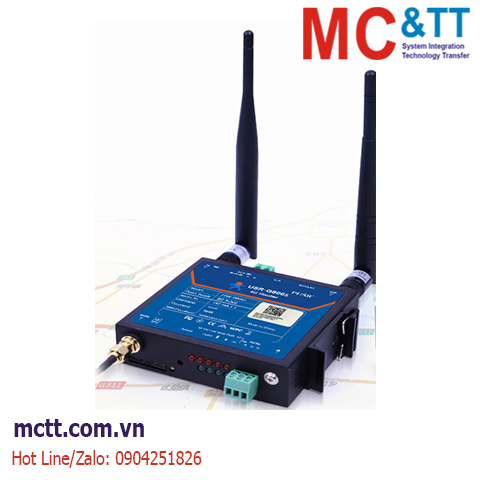

Router công nghiệp 4G + GPS USR-G806s-G của hàng PUSR
The USR-G806s is an IoT cellular router that integrates 4G LTE, Wi-Fi, GPS and VPNtechnologiestoprovide an easy, reliable, secure Internet connectivity and high-speed data access for equipmentnetworking. With technologies such as 4G wireless wide area network ,Dual Ethernet ports(LAN+WAN),Wi-Fi wireless local area network it provides uninterrupted multiple network access capabilities.The G806s can offer a choice of (3-wire) RS485/232. This means that RS485/232 devices,suchaselectricity meters, programmable logic controllers including Modbus RTU equipment canconnecttothe internet directly through the router. With the GPS function, users can monitor their asset remotely,and can monitor the the trajectory of the vehicle. The product adopts high-performance CPU, working frequency up to 580MHz, basedonavarietyof hardware interfaces and powerful software functions, users can quickly build their ownapplicationnetwork. It is suitable for large-scale distributed industrial applications, such as smart expresscabinets, charging piles, CCTV, ATM machines, ticket machines, traffic management,vendingmachines,medical device networking, tower monitoring,lifts monitoring, digital signage, electricity, waterconservancy, environmental protection, etc.
Tính năng
Stable And Reliable
Metal shell, IP30 protection.Ethernet ports support 1.5KV isolation transformer protection.
Wide operating temperature.Wide voltage input,reverse polarity protection.
ESD,Surge,EFT protection. Embedded hardware watchdog, self-recovers from malfunctions, maintaininghighdeviceavailability.
Uninterrupted network access
Supports 2G/3G/4G network all over the world ,supports APN/VPDN simcard.
Fail-over between 4G and WAN, ensures automatic switch to alternativebackupconnection,effectively ensuring uninterrupted data transmission.
VPN tunnel detection: maintains stable connection of the VPN tunnel, ensuringcontinuoustransmission.
Multi-layer link detection mechanism, automatic redial and recovery
Rich functions
Supports PUSR cloud platform to facilitate remote monitoring and central managementoflarge-scale device networks.
Supports GPS positioning, can be combined with PUSR cloud to achieve runningtrackmonitoring,and also support reporting positioning data to private server in RCM or GGA format.
Supports remote monitoring, upgrade and parameter configuration, remote access tothebuilt-inweb pages.
Supports email alarm,SMS alarm,abnormal alarm push in time.
Dual Ethernet ports, WAN/LAN. Multiple VPN protocols.
Wall-mounting and DIN-rail mounting options available,easy to install.
Supports IPsec VPN, PPTP,L2TP, OPENVPN,GRE etc., ensuring secure data transmission.
Supports fire wall functions including NAT, access control, DDoS defense, IP-MACbinding,etc., protecting the network against external attacks.
Supports WLAN,scaling more devices access.
Supports APN automatic inspection ,mode switch ,SIM information display, supports privatesimcard. Supports DDNS,PPPOE,DHCP,Static IP.
Allows multiple network management methods including SSH, WEB, TELNET andanetworkmanagement platform.
Provides
Thông số kỹ thuật
| USR-G806s-G Specification |
| Item |
Parameters |
Value |
| |
Power Input |
9~36V DC |
| Working Current |
Average 270mA/12V |
| Power Connector |
DC Power Jack Barrel Type Female 5.5*2.1mmRoundsocket or 2 PIN 5.08mm industrial terminalblock,reverse polarity protection |
| Cellular Interface |
Frequency |
TDD-LTE: B34/38/39/40/41 |
| FDD-LTE:B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 |
| WCDMA: B1/2/4/5/6/8/19 |
| GPRS/EDGE: B2/3/5/8 |
| Max. Data Rates |
TDD-LTE: 130 Mbps (DL)/50 Mbps (UL) |
| FDD-LTE: 150 Mbps (DL)/50 Mbps (UL) |
| WCDMA: 384 kbps (DL)/384 kbps(UL) |
| GPRS: 107 kbps (DL)/85.6 kbps (UL) |
| EDGE: 296 kbps (DL)/236.8 kbps (UL) |
| Antenna |
1 x SMA-K |
| SIM card |
1 x 2FF SIM |
| Ethernet Ports |
WAN |
1 x WAN port (can be configured to LAN)10/100Mbps, supports auto MDI/MDIX,1.5KV networkisolation transformer protection |
| LAN |
1 x LAN port, 10/100 Mbps, supports autoMDI/MDIX,1.5KV network isolation transformerprotection |
| WiFi |
Standards & Frequency |
IEEE 802.11b/g/n,2.4GHz, AP mode |
| Data speed |
IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum150Mbps |
| Antenna |
1 x SMA-K |
| Transmission distance |
80 meters by line of sight.Actual transmissiondistance depends on environment of the site. |
| GPS Interface |
Antenna Interface |
1 * SMA-K |
| Antenna Type |
Active antenna，frequency range 1575.42Mhz |
| Accuracy |
The theoretical value for positioning accuracyis2.5 meters, this accuracy is influencedbyfactorssuch as the number of available satellites. |
| Serial Interface |
RS485 |
3 PIN 3.81mm industrial terminal block. |
| Baud rate |
1200/2400/4800/9600/19200/38400/57600/115200/230400 |
| Data bits |
8 |
| Stop bits |
1, 2 |
| Parity |
NONE,ODD,EVEN |
| Other Interface |
Reload |
Reset to factory settings |
| TBD |
Debug interface (TTL Level) |
| Indicators |
PWR, WAN. LAN, WLAN, GNSS, Signal, 2G, 3G,4G |
| Physical Characteristics |
Housing |
Metal shell,IP30 |
| Dimensions |
112.0*84.0*25.0 mm(L*W*H） |
| Installation method |
Panel mounting, DIN-Rail mounting |
| EMC |
IEC 61000-4-2(ESD): Level 3 IEC 61000-4-4(EFT): Level 3 IEC 61000-4-5(Surge): Level 3 |
| Operating temperature |
-20℃～+70℃ |
| Storage temperature |
40℃～+125℃ |
| Operating humidity |
5%～95%RH（non-condensing) |
| Network Connection |
WAN protocol |
PPP, PPPoE, DHCP client |
| LAN protocol |
ARP, DHCP server, NAT |
| 4G network access |
Auto APN/VPDN, private network Access authentication: CHAP/PAP |
| WLAN security |
Open system,WPA/WPA2 PSK |
| TKIP/AES encryption |
| IP routing |
Static routing |
| Network diagnosis |
Ping,route trace,DNS |
| Serial modem |
Work mode |
NET,HTTPD |
| Sockets |
4 sockets,4 centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC |
| Modbus RTU toTCP |
Support |
| Device management |
Configuration |
Web |
| Remote management |
Telnet, SSH, AT command,SNMP |
| PUSR platform |
Remote monitoring,remote upgrade,alarming,basestation location,remote access to web pagesoftherouter |
| Security |
Failover backup |
Failover between 4G and WAN, ensures automaticswitch to alternative backup connection |
| Firewall |
DMZ, anti-DoS, Filtering (IP/Domain name/MACaddress), Port Mapping, Access Control |
| VPN |
Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1),OPENVPN protocols |
| Service |
DDNS |
Remote access the device through domainname |
| Alarm |
Email,SMS |
| Others |
NTP client |
| Timing task |
