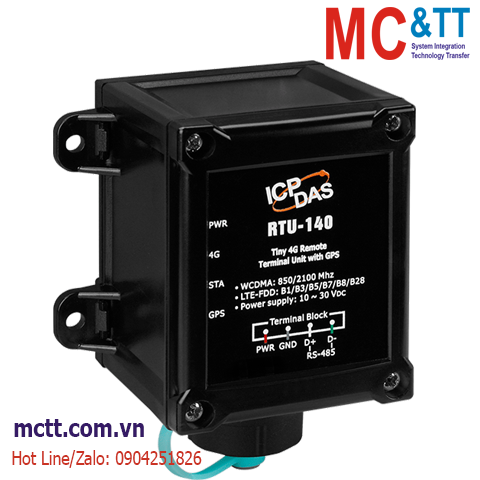

Modem RTU LTE (4G) + GPS ICP DAS RTU-140 CR
Feature
- Support for UMTS/HSPA+850/2100 MHz.
- Support LTE-FDD B1/B3/B5/B7/B8/B28.
- Automatic / continuous 3G / 4G connection management.
- Supports Modbus RTU master communication protocol, allowing three ModBus RTU devices to be connected in series via one RS-485 interface.
- Provide OPC Server software and centralized data management.
- Can be used as I/O and GPS data logger, data stored in micro SD card.
- Micro SD capacity support up to 4GB.
- 1 set of Micro USB (for setting), 1 set of RS485, 1 set of GPS.
- Provide 3.7V lithium battery backup power interface.
Introduction
The RTU-140 product is the cost-effective small M2M 4G terminal solution. This series of products is an intelligent 4G remote terminal device module with built-in high-performance 32bit computing unit for harsh industrial environments. It has 1 set of 4G modules, 1 set of GPS modules, 1 RS-485, 1 Micro SD slot and 1 Micro USB interface for setting. The RTU-140 product allows three Modbus RTU devices to be connected in series via one RS-485 interface, and the I/O and GPS data are actively transmitted to the remote M2M through 3G/4G through the custom RTU protocol. RTU Center platform. ICP DAS also provides related software software including M2M RTU Center, M2M RTU Win32 API library and OPC server for RTU devices, so that customers can quickly establish monitoring programs. In addition to the above functions, the RTU-140 also supports RTU Center related monitoring functions. It also has the function of I/O data logger, which can store I/O and GPS data in Micro SD card. The external and lithium battery connection interface is provided at the input of the power supply. After the external power supply is interrupted, the RTU-140 series can also operate for a period of time for emergency processing.
Application
Specifications
| CPU Module |
| CPU |
32 bit CPU |
| Storage Expansion |
4GB max |
| LED Indicators |
| Status |
1 x PWR
1 x 4G
1 x STA
1 x GPS |
| 3G System |
| Data Transmission Rate |
DC-HSPA+
Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps |
| Frequency Band |
UMTS/HSPA+ 850/2100 MHz |
| Power Class |
Class 3 (250mW @ WCDMA/HSPA) |
| 4G System |
| Data Transmission Rate |
LTE(Cat.1)
Downlink transfer: Max. 10 Mbps; Uplink transfer: Max. 5Mbps |
| Frequency Band |
LTE-FDD: B1/B3/B5/B7/B8/B28 |
| GPS/GNSS |
| Acquisition Time |
Cold / Warm / Hot Start Time：35 / 30 / 1 sec. at open sky and stationary |
| Protocol |
NMEA 0183 version 4.0 |
| Sensitivity |
Tracking = up to -165 dBm;
Acquisition = up to -148 dBm |
| COM Ports |
| Ports |
1 x Micro USB(for configuration only)
1 x RS-485 (Use for communication with other devices) |
| Power |
| Consumption |
Sleep: 0.1W(24 mA @ 4VDC)
Idle:1.2~0.6W( 300~150 mA @ 4 VDC) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
82 x 94 x 55 (W x L x H) |
| Installation |
DIN-Rail; Wall mount |
| Environment |
| Operating Temperature |
-25 ℃ ~ +75 ℃ |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Humidity |
5~95% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| RTU-140 |
4G Remote Terminal Unit with GPS (RoHS) (Asia Only) |
