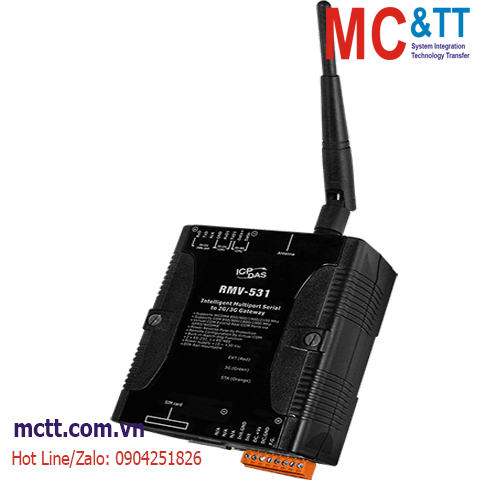

Modem IP Gateway WCDMA(3G) + RS-232/485 ICP DAS RMV-531 CR
Feature
- Support GPRS/WCDMA network automatic re-connection function.
- Support remote maintenance PLC devices that used serial communication as Siemens S7-200 series, Siemens S7-300 series, WP-8000, LP-8000, iP-8000 and XP-8000.
- Support WCDMA 850/900/1900/2100 MHz frequency.
- Support GPRS 850/900/1800/1900 MHz frequency.
- Virtual COM Extend Real COM Ports via GPRS/WCDMA.
- Remote Configuration by Virtual COM.
- 1 x RS-232 port and 1 x RS-485 port for Virtual COM. 1 x Utility port for Configuration.
- Built-in Watch-dog Function.
- Power Reverse Polarity Protectio.
- Power supply +10 VDC ~ +30 VDC.
- DIN-Rail mountable.
- Support Modbus TCP to Modbus RTU Protocol via GPRS/WCDMA.
Introduction
RMV-531 is an intelligent multiport serial to 2G/3G gateway for industry M2M applications. It is designed for linking RS-232/485 devices to a GPRS/WCDMA network. The user-friendly VxComm Driver/Utility and VxServer allow users to easily turn the built-in COM ports of the RMV-531 into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the RMV-531 is able to meet the demands of every network-enabled application. In addition, the RMV-531 also supports GPRS/WCDMA network automatic re-connection function when the RMV-531 is broke the GPRS/WCDMA network by something happened. M2M solution will improve the service quality and reduce operating costs. Many application areas can be improved by using RMV-531.
Application
Specifications
| CPU Module |
| CPU |
32 bit CPU |
| Real Time Clock |
Gives time(sec, min, hour) & data, leap year compensation |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x EXT
1 x 3G
1 x STA |
| 2G System |
| Data Transmission Rate |
GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band |
850/900/1800/1900 MHz |
| Coding Schemes |
CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot |
GPRS class 12; GPRS station class B |
| Power Class |
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz) |
| 3G System |
| Data Transmission Rate |
HSPA
Downlink transfer: Max. 7.2 Mbps; Uplink transfer: Max 5.76 Mbps
HSDPA Max. 7.2 Mb/s
WCDMA Max. 384 kb/s Download/Upload link |
| Frequency Band |
WCDMA 850/900/1900/2100 MHz |
| Power Class |
Class 3 (250mW @ WCDMA/HSPA) |
| COM Ports |
| Ports |
1 x RS-232(use for device configuration and debug)
1 x RS-232(use for communication with other devices)
1 x RS-485 (Use for communication with other devices) |
| Baud Rate |
2400、4800、9600、19200、38400、57600 and 115200 bps |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
91 x 132 x 52 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Humidity |
5 ~ 95% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| RMV-531 CR |
RS-232, RS-485 to 2G/3G Gateway (RoHS) (Asia Only) |
