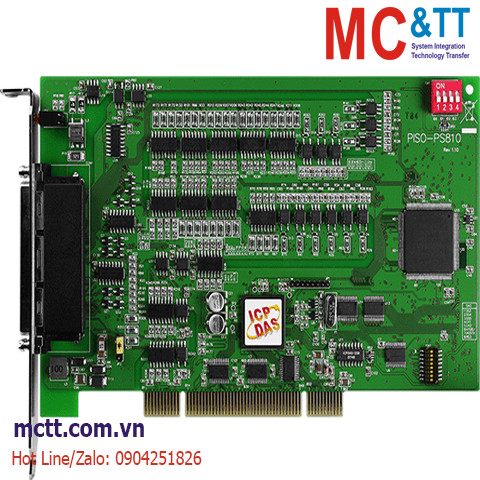

Card PCI High-speed 8-axis Motion Control Card with FRnet Master ICP DAS PISO-PS810 CR
Features
- Independent 8-axis motion control
- Support for hand wheel and jog functions
- 4-step home modes with auto-searching
- 2/3-axis linear interpolation function
- 2-axis circular interpolation function
- Programmable T/S-curve acceleration and deceleration
- Programmable ring counter
- Alarm reset and error counter clear output (ERC)
- High-speed auto-incremental and auto-reloadable compare output (CMP)
- Expandable remote I/O: 128 DI and 128 DO via a two-wire FRnet interface
Introduction
The PISO-PS810 is an 8-axis stepping/pulse-type servo motor control card that can be used on any IPC with a 5 V or 3.3 V PCI bus and is suitable for general-purpose motion applications. This card is equipped with one FRnet Master which allows the fast remote I/O of the IPC to be expanded easily. The two-wired FRnet interface allows a maximum 128 DI and 128 DO channels, which are automatically scanned within a period of 0.72 ms. In addition to its wide speed range, this intelligent motion controller also has a variety of motion control functions built in, such as 2/3-axis linear interpolation, 2-axis circular interpolation, T/S-curve acceleration/ deceleration, numerous synchronous actions, automatic homing, and others.
A major advantage is that the majority of the PISO-PS810 motion control functions are performed by the high-performance motion ASIC with little load on the processor. The motion status, FRnet I/O, and the other I/O cards on the IPC can still be monitored while driving the motors. As the low CPU loading requirements of the PISO-PS810 is minimal, one or more motion cards can be used with a single IPC. ICP DAS also provides a variety of functions and examples that can be used to reduce the need for additional programming, making it a highly cost-effective solution for motion control application developers.
Applications
- Semiconductor Manufacturing
- Component Inspection
- Manufacturing Quality Control
- Food and Beverage Inspection
- Microscopy and Medical Imaging
- Biometrics Applications
- X-Y-Z Table
- Fix-pitch Stamping Machinery
- Transfer Machinery
- Spinner
- Load/Unload
Click to view the Introduction of https://mctt.vn/motion-control-icp-das
Specifications
| Software |
| OS Support |
Windows 7 32/64-bit
Windows XP/2000 32-bit |
| Utility |
EzGo Utility |
| Hardware |
| Connector |
100-pin VHDCI |
| General |
| No. of Axes |
8 |
| Operation Mode |
Semi-closed Loop |
| Synchronous Action |
10 activation factors and 14 actions |
| Speed Profile |
T/S-curve |
| Position Control Mode |
Incremental mode
and Absolute mode |
| Command Type |
Pulse Command |
| Axis I/O |
| Servo Interface Output |
SVON, ALM_RST, ERC |
| Mechanical Switch Input |
Home, LMT+/-, NHOME, EMG |
| Position Compare Output |
High-Speed 5 V TTL
or 24 V open collector
(4 of any 8 axes) |
| Servo Interface Input |
INP, ALM |
| Encoder Input |
| Ring Counter Mode |
32-bit |
| Mode |
A/B Phase, Up/Down |
| Counting Rate |
4 MHz (Max.) |
| Counter Width |
32-bit |
| Pulse Output |
| Mode |
CW/CCW, PULSE/DIR |
| Counter Width |
32-bit |
| Rate |
4 MHz (Max.) |
| Interpolation |
| Circular |
2 groups of 2 axes Interpolation |
| Linear |
2 groups of 2 to 3 axes Interpolation |
| Digital Input |
| Channels |
Local: 8 DI
Expandable: 128 DI |
| Isolation |
2500 Vrms optical isolation |
| Digital Output |
| Channels |
Local: 8 DO
Expandable: 128 DO |
| Isolation |
2500 Vrms optical isolation |
| PC Bus |
| Type |
Universal PCI Bus |
| Power |
| Consumption |
+5 V @ 500 mA |
| Environment |
| Operating Temperature |
-20 ~ +75°C |
| Storage Temperature |
-30 ~ +85°C |
| Humidity |
5 ~ 85% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-PS810 CR |
Universal PCI Bus, High-speed 8-axis Motion Control Card with FRnet Master |
