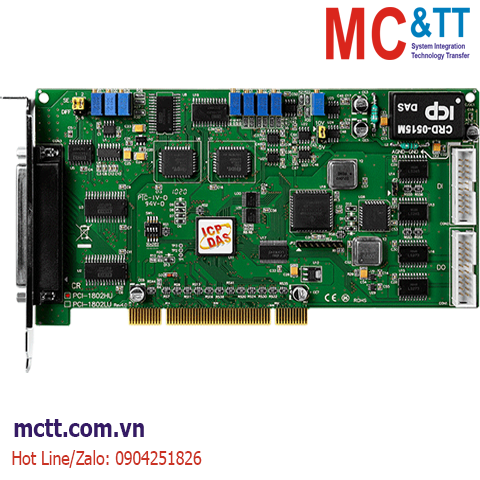

Card PCI 32 kênh AI 12 bits 44k S/s + 2 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-1802HU CR
Features
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 2-channel, 12-bit Analog Output
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Resistors for DI Channels
- 32 Single-ended/16 Differential Analog Input Channels
- 12-bit, 44 kS/s AD Converter
- Built-in MagicScan Controller
- Internal Trigger: Software-trigger, Pacer-trigger
- External Trigger: Post-trigger, Pre-trigger, Middle-trigger
- High-speed data transfer rate up to 2.7 M words/sec.
Introduction
The PCI-1802HU card has a universal PCI interface supporting both 3.3 V and 5 V PCI bus. All the members in the PCI-1800 family have the same architecture; they feature a continuous A/D acquisition function of up to 44 kHz for high gain under DOS and offer two 12-bit D/A output channels, 16 DI channels and 16 DO channels. The PCI-1802 series provides 32 single-ended or 16 differential inputs. In addition, an amazing A/D channel scan function called “MagicScan” is provided for users to easily implement multi-channel analog data acquisition applications. The specific MagicScan controller takes out most works of getting A/D value such as selecting channel, setting gain, settling time, triggering ADC and getting data. Even in channel scan mode, it can have different gain code for each channel, and the sampling rate can still reach 44 kS/s totally.
The PCI-1802 series cards are equipped with 8 K samples hardware FIFO to reduce data overflow issues under multi-tasking environment like Windows and Linux.
The PCI-1802HU has a Card ID switch with which users can recognize the board by the ID via software when using two or more PCI-1802HU cards in one computer. The pull-high/low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
ICP DAS PC-Based Multifunction Board Selection Guide |
| Model Name |
Bus |
D/A
Channel |
A/D
Channel |
A/D
Sampling
Rate |
FIFO Size |
Software
Trigger
(Polling) |
Channel Scan
(Pacer) |
External
Triger |
Interrupt
function |
|
| PEX-1202L |
PCI
Express |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
110 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1202LU |
Universal
PCI |
| PEX-1202H |
PCI
Express |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PEX-1202HU |
Universal
PCI |
| PCI-1602U |
Universal
PCI |
12-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
100 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1602FU |
Universal
PCI |
12-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
200 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1800LU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
16 S.E/8 Diff |
330 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1800HU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
16 S.E/8 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1802LU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
330 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1802HU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
44 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-822LU |
Universal
PCI |
16-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective
Programmable DIO |
| PCI-826LU |
Universal
PCI |
16-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective
Programmable DIO |
Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
Male 20-bit ribbon x 2 |
| Analog Input |
| Channels |
32 single-ended/16 differential |
| Range |
Gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1V, ±0.05 V, ±0.01 V, ±0.005 V
Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate |
330 kS/s. Max. |
| Input Impedance |
10 MΩ/6 pF |
| Overvoltage Protection |
Continuous ±35 Vp-p |
| Zero Drift |
±2 ppm/°C of FSR |
| FIFO Size |
8192 samples |
| Trigger Mode |
Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer |
Polling |
| Analog Output |
| Channels |
2 |
| Range |
Bipolar:±5 V, ±10 V |
| Resolution |
12-bit |
| Accuracy |
0.06% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Response Time |
1.0 MHz (Typical) |
| Voltage Output Capability |
±5 mA |
| Slew Rate |
8.33 V/μs |
| Operation Mode |
Software |
| Digital Input |
| Channels |
16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type |
5 V/TTL |
| Resolution |
16-bit |
| Input Frequency |
10 MHz Max. |
| Reference Clock |
Internal: 8 MHz |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI,
32-bit, 33 MHz |
| Data Bus |
16-bit |
| Power |
| Consumption |
300 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 200 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCI-1802HU CR |
Universal PCI, 44k S/s, 32-ch, 12-bit AI Multifunction Board (RoHS)
Includes one CA-4002 D-Sub connector |
