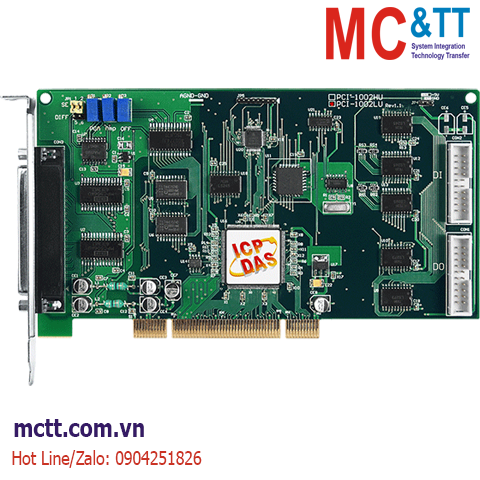

Card PCI 32 kênh AI 12 bits 110 kS/s + 2 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-1002LU CR
Features
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 32 Single-ended/16 Differential Analog Input Channels
- 12-bit, 110 kS/s AD Converter
- Internal Pacer-trigger
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Resistors for DI Channels
Introduction
The PCI-1002LU supports 3.3 V/5 V PCI bus. These cards are a family of A/D board and features low-gain 110 kS/s AI. It provides 12-bit 32 single-ended or 16 differential AIs, 16 DI and 16 DO channels.
The PCI-1002LU provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
ICP DAS PC-Based Multifunction Board Selection Guide |
| Model Name |
Bus |
D/A
Channel |
A/D
Channel |
A/D
Sampling
Rate |
FIFO Size |
Software
Trigger
(Polling) |
Channel Scan
(Pacer) |
External
Triger |
Interrupt
function |
|
| PEX-1202L |
PCI
Express |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
110 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1202LU |
Universal
PCI |
| PEX-1202H |
PCI
Express |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PEX-1202HU |
Universal
PCI |
| PCI-1602U |
Universal
PCI |
12-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
100 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1602FU |
Universal
PCI |
12-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
200 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1800LU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
16 S.E/8 Diff |
330 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1800HU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
16 S.E/8 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1802LU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
330 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1802HU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
44 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-822LU |
Universal
PCI |
16-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective
Programmable DIO |
| PCI-826LU |
Universal
PCI |
16-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective
Programmable DIO |
Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1
20-pin box header x 2 |
| Analog Input |
| Channels |
32 single-ended/16 differential |
| Range |
Gain: 1, 2, 4, 8
Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate |
110 kS/s. Max. |
| Input Impedance |
10 MΩ/6 Pf |
| Overvoltage Protection |
Continuous ±35 Vp-p |
| Zero Drift |
±4 ppm/°C of FSR |
| Trigger Mode |
Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer |
Polling, Interrupt |
| Digital Input |
| Channels |
16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 2.4 mA
Source: 0.8 mA |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type |
5 V/TTL |
| Resolution |
16-bit |
| Input Frequency |
10 MHz Max. |
| Reference Clock |
Internal: 4 MHz |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Power |
| Consumption |
960 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 188 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCI-1002LU CR |
Universal PCI, 110 kS/s, 32-ch, 12-bit AI Multifunction Board (RoHS)
Includes one CA-4002 D-Sub connector |
