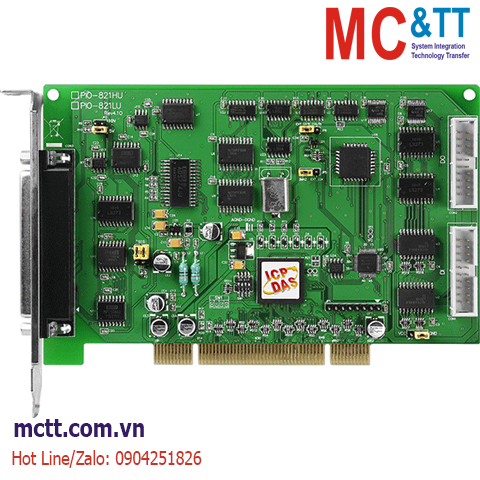

Card PCI 16 kênh AI 12 bits 45 kS/s + 1 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PIO-821HU CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 16 Single-ended/8 Differential Analog Input Channels
- 12-bit, 45 kS/s AD Converter
- AD Trigger: Software-trigger, Pacer-trigger, External-trigger
- Interrupt Handling
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Resistors for DI Channels
- 1-channel, 12-bit Analog Output
- Supports Card ID (SMD Switch)
Introduction
The PIO-821HU universal PCI card supports 3.3 V/5 V PCI bus. They feature a 12-bit ADC and the maximum sampling rate of the A/D converter reaches up to about 45K samples/sec.,16 single-ended or 8 differential AI channels, 12-bit DAC voltage output and 16 DI and 16 DO channels. The PIO-821HU supports high gain (1, 10, 100, 1000).
The PIO-821HU also adds a Card ID switch and pull-high/pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-821HU cards in one computer. The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
ICP DAS PC-Based Multifunction Board Selection Guide |
| Model Name |
Bus |
D/A
Channel |
A/D
Channel |
A/D
Sampling
Rate |
FIFO Size |
Software
Trigger
(Polling) |
Channel Scan
(Pacer) |
External
Triger |
Interrupt
function |
|
| PEX-1202L |
PCI
Express |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
110 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1202LU |
Universal
PCI |
| PEX-1202H |
PCI
Express |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PEX-1202HU |
Universal
PCI |
| PCI-1602U |
Universal
PCI |
12-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
100 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1602FU |
Universal
PCI |
12-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
200 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1800LU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
16 S.E/8 Diff |
330 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1800HU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
16 S.E/8 Diff |
44 kS./s |
1 k |
V |
V |
V |
- |
|
| PCI-1802LU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
330 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-1802HU |
Universal
PCI |
12-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
44 kS./s |
8 k |
V |
V |
V |
- |
|
| PCI-822LU |
Universal
PCI |
16-bit,
2-ch |
12-bit,
32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective
Programmable DIO |
| PCI-826LU |
Universal
PCI |
16-bit,
2-ch |
16-bit,
32 S.E/16 Diff |
250 kS./s |
8 k |
V |
V |
V |
V |
Cost-effective
Programmable DIO |

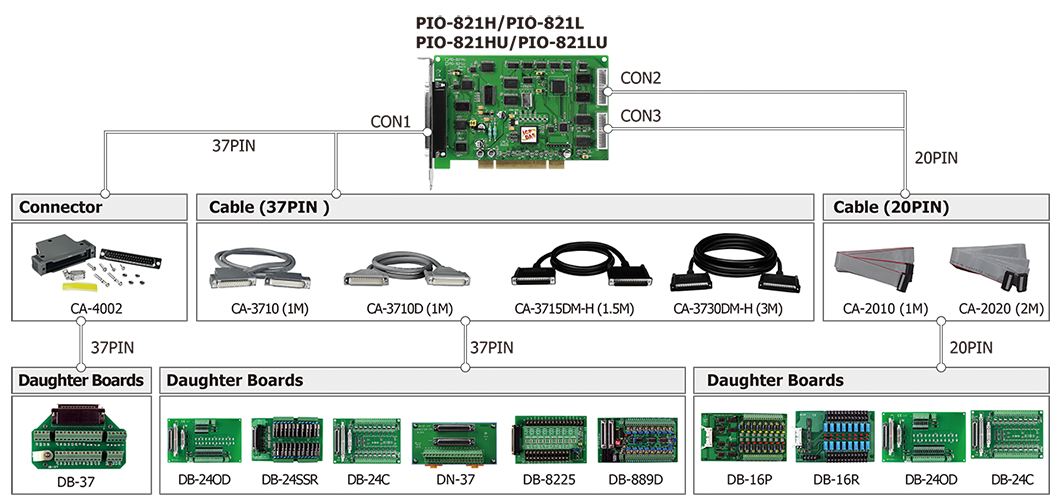

Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
20-pin box header x 2 |
| Analog Input |
| Channels |
16 single-ended/8 differential |
| Range |
Gain: 1, 10, 100, 1000
Bipolar Range: ±5 V, ±0.5 V, ±0.05 V, ±0.005 V |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ±1 LSB @ 25 °C, ± 10 V |
| Sampling Rate |
45 kS/s. Max. |
| Input Impedance |
10 MΩ/6 Pf |
| Overvoltage Protection |
Continuous ±35 Vp-p |
| Zero Drift |
±4 ppm/°C of FSR |
| Trigger Mode |
Software, Internal programmable pacer |
| Data Transfer |
Polling, Interrupt |
| Analog Output |
| Channels |
1 |
| Range |
Unipolar:0 ~ 5 V, 0 ~ 10 V, 0 ~ Ext Ref |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ± 1/2 LSB @ 25 °C, ±10 V |
| Response Time |
500 kHz (Typical) |
| Voltage Output Capability |
±5 mA |
| Slew Rate |
0.3 V/μs |
| Operation Mode |
Static Update |
| Digital Input |
| Channels |
16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 2.4 mA
Source: 0.8 mA |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
3 (Internal pacer x 1/Independent x 2) |
| Type |
5 V/TTL |
| Resolution |
16-bit |
| Reference Clock |
Internal: 2 MHz |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
960 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
97 x 159 x 22 (W x L x D)) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PIO-821HU CR |
Universal PCI, 45 kS/s, 16-ch, 12-bit AI Multifunction Board (RoHS)
Includes one CA-4002 D-Sub connector |
