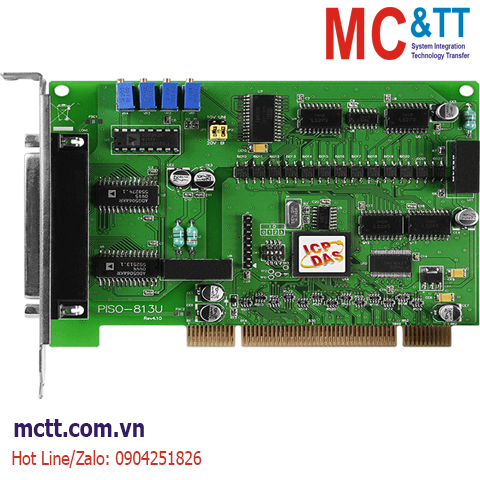

Card PCI 32 kênh AI 12 bits 10 kS/s ICP DAS PISO-813U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 32 Single-ended Analog Input Channels
- Bipolar Input: ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V
- Unipolar Input: 0 ~ +0.625 V, 0 ~ +1.25 V, 0 ~ +2.5 V, 0 ~ +5 V, 0 ~ +10 V
- Programmable Gain Control: 1, 2, 4, 8, 16
- AD Trigger: Software-trigger
- 12-bit, 10 kS/s AD Converter
- 3750 Vrms Bus Isolation Protection
- Built-in DC/DC Converter with 3000 VDC Protection
Introduction
The PISO-813U card is bus-typed isolated A/D board and supports 3.3 V/5 V PCI bus. They feature 12-bit 32 single-ended AIs, 3750 Vrms bus-typed isolation protection and 10 kS/s data acquisition under DOS and Windows. It is the most cost effective isolated A/D board for the universal PCI in the world.
The PISO-813U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PISO-813U cards in one computer.

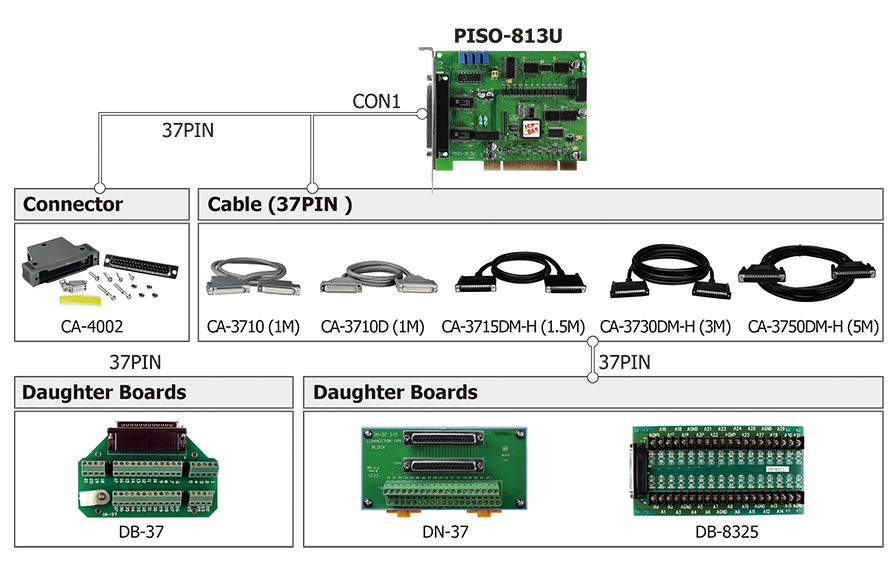

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.Accessories
Applications
- High speed data acquisition system.
- Harsh environment operation.
- Signal isolation.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1 |
| Analog Input |
| Channels |
32 single-ended |
| Range |
Gain: 1, 2, 4, 8, 16
Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625V
±5 V, ±2.5 V, ±1.25 V, ±0.625V
Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V, 0 ~ 0.625 V |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ±1 LSB @ 25 °C, ± 10 V |
| Sampling Rate |
10 kS/s. Max. |
| Input Impedance |
10 MΩ/6 Pf |
| Overvoltage Protection |
Continuous ±35 Vp-p |
| Zero Drift |
±25 ppm/°C of FSR |
| Trigger Mode |
Software |
| Isolation |
3750 Vrms (Bus Type) |
| Data Transfer |
Polling |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
850 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
92 x 128 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-813U CR |
Universal PCI, 32-ch, 12-bit, 10 kS/s Isolated AI Board (RoHS)
Includes one CA-4002 D-Sub connector |
