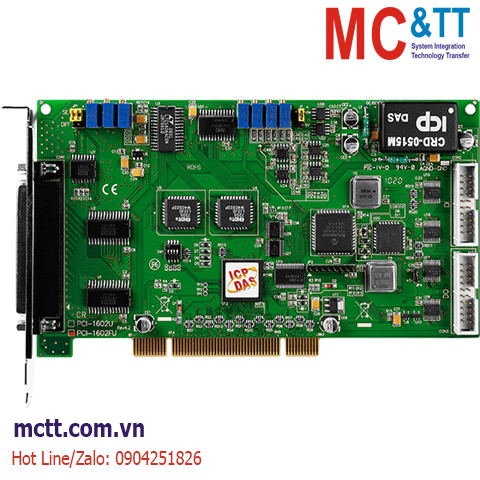

Card PCI 32 kênh AI 16 bits 200 kS/s + 2 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-1602FU CR

Mã sản phẩm: PCI-1602FU

Thương hiệu: ICP DAS

Tình trạng:

Universal PCI, 200 kS/s, 32-ch, 16-bit AI Multifunction Board (8 K word FIFO)

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Card PCI 32 kênh AI 16 bits 200 kS/s + 2 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-1602FU CR

Features

Universal PCI (3.3 V/5 V) Interface
Supports Card ID (SMD Switch)
2-channel, 12-bit Analog Output
16-channel 5 V/TTL Digital Output
16-channel 5 V/TTL Digital Input
- Pull-high and Pull-low Resistors for DI Channels
32 Single-ended/16 Differential Analog Input Channels
- 12-bit, 200 kS/s AD Converter
- Built-in MagicScan Controller
- Internal Trigger: Software-trigger, Pacer-trigger
- External Trigger: Post-trigger, Pre-trigger, Middle-trigger
High-speed data transfer rate up to 2.1 M words/sec

Introduction

The PCI-1602FU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-1602FU has a universal PCI interface supporting both 3.3 V and 5 V PCI bus, and it features a continuous, 200 kS/s 16-bit resolution A/D converter, 8 K-sample hardware FIFO, a MagicScan controller (for multi-channel scan), 2-ch 16-bit D/A converter, 16-ch DI and 16-ch DO. The PCI-1602FU provides either 32-ch single-ended or 16-ch differential AIs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (1, 2, 4 and 8).

The PCI-1602FU has a Card ID switch for users to recognize the board by the ID via software when using two or more PCI-1602FU cards in one computer. The pull-high/pull-low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

ICP DAS PC-Based Multifunction Board Selection Guide
Model Name	Bus	D/A Channel	A/D Channel	A/D Sampling Rate	FIFO Size	Software Trigger (Polling)	Channel Scan (Pacer)	External Triger	Interrupt function
PEX-1202L	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PCI-1202LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PEX-1202H	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PEX-1202HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PCI-1602U	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	100 kS./s	8 k	V	V	V	-
PCI-1602FU	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	200 kS./s	8 k	V	V	V	-
PCI-1800LU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	330 kS./s	1 k	V	V	V	-
PCI-1800HU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	44 kS./s	1 k	V	V	V	-
PCI-1802LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	330 kS./s	8 k	V	V	V	-
PCI-1802HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	8 k	V	V	V	-
PCI-822LU	Universal PCI	16-bit, 2-ch	12-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO
PCI-826LU	Universal PCI	16-bit, 2-ch	16-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO

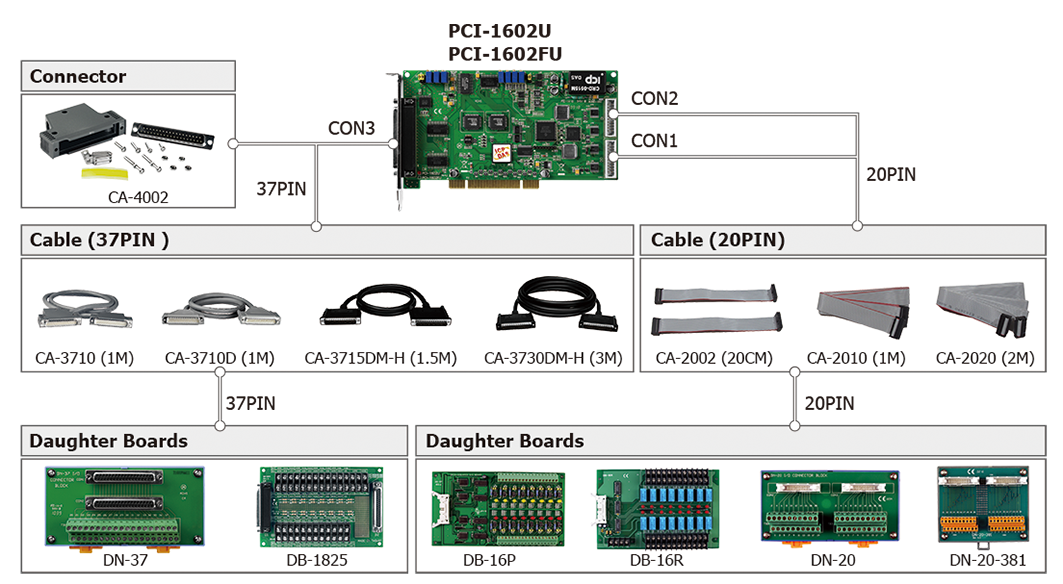

Accessories

Applications

High speed data acquisition system.
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 Male 20-bit ribbon x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution	16-bit
Accuracy	0.01 % of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	200 kS/s. Max.
Input Impedance	10 MΩ/6 pF
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
FIFO Size	8192 samples
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling

Analog Output
Channels	2
Range	Bipolar:±5 V, ±10 V
Resolution	12-bit
Accuracy	0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Response Time	1.0 MHz (Typical)
Voltage Output Capability	±5 mA
Slew Rate	8.33 V/μs
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Load Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Load Current	Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)

Timer/Counter/Frequency
Channels	3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type	5 V/TTL
Resolution	16-bit
Input Frequency	10 MHz Max.
Reference Clock	Internal: 8 MHz

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	16-bit

Power
Consumption	300 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 188 x 22 (W x L x D)

Environment
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PCI-1602FU CR

Universal PCI, 200 kS/s, 32-ch, 16-bit AI Multifunction Board (8 K word FIFO) (RoHS)
Includes one CA-4002 D-Sub connector
