Mô tả

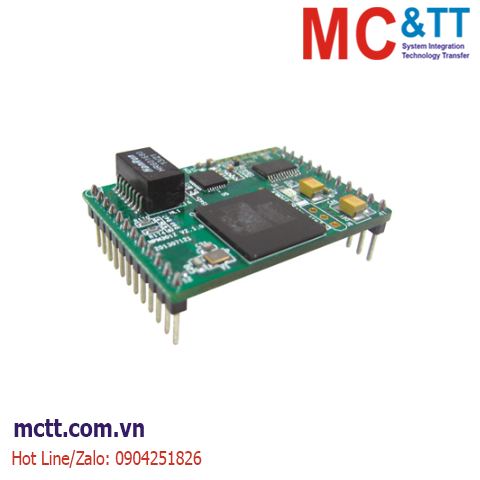

Module nhúng chuyển đổi 1 cổng RS-232/422/485 sang Ethernet 3Onedata NPM301Z

NPM301Z is a high performance embedded serial port to Ethernet module, it supports 1 RS-232, RS-422 or RS-485 to 1 100M Ethernet port.

The module is embedded with network transformer, and it can form a 10Base-T/100Base-TX self-adaptive Ethernet port via adding a RJ45 port. Baud rate of serial port is 300-115200bps. It supports TCP Server, TCP Client, TCP Auto, UDP and Real COM operating mode. It supports maximum 4 TCP connections and domain name access.

All settings of NPM301Z are achieved via serial port or network. It can be used as communication processor between serial device and PC or used for remote communication among multiple serial devices. It can be widely used in PLC control and management, building automation and control, healthcare automation system, measuring instrument and environment dynamic monitoring system.

Tính năng

  • Support 1 serial port to 1 10/100 Base-T(X) self-adaptive Ethernet port
  • Support TCP Server, TCP Client, TCP Auto, UDP and Real COM driver operating mode
  • Input voltage: 5VDC
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

System Information



32 bits ARM inner core

Standard: 10/100Base-T(X)

Protocol: support TCP, UDP, ARP, HTTP, DHCP and DNS protocol

Speed: 10/100M

Operating mode: full duplex or half duplex

Configuration

WEB configuration management, WINDOWS hyper terminal, BlueEyes_II management software

Security

User permission classification

Serial device server

1-port serial device server, support 4 TCP or UDP session connections; Multiple operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP

Ethernet port 1 100M Ethernet port
Serial port TTL: TXD, RXD, CTS, RTS, DTR, DSR, GND

Baud rate: 300-115200bps

Data bit: 5bit, 6bit, 7bit, 8bit

Parity bit: None, Even, Odd, Space, Mark

Stop bit: 1bit, 1.5bit, 2bit

Indicator Interface indicator, power supply indicator
Power Requirement

5VDC (±5%)

Environmental Limit

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Type: pin type independent module

Size (W×H×D): 44.2mm×16mm×31.6mm (with pins)

Pin header: 12 pins on the left row, 11 pins on the right row, pin header spacing is 2.54mm

Weight: 9g

Certification

CE, FCC, RoHS

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models 100M Ethernet port RS-232/RS-422/RS-485 Power Supply Range
NPM301Z 1 1 5VDC (±5%)
