Module switch công nghiệp nhúng 8 cổng GbE + 4 cổng Gigabit quang 3onedata IEM6300-12G

Chia sẻ:
Mã sản phẩm: IEM6300-12G
Thương hiệu: 3onedata
Tình trạng:

12-port Gigabit Layer 2 Industrial Ethernet Switch Module

Liên hệ
Mô tả

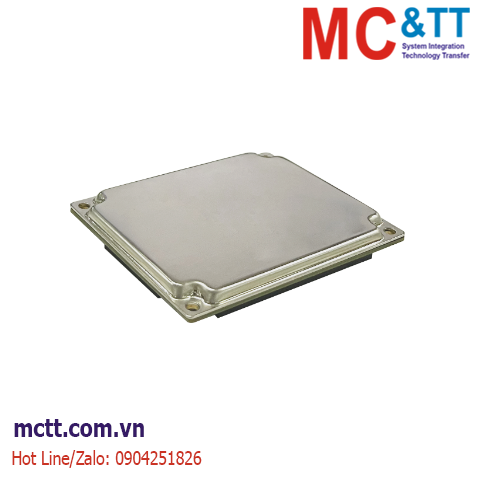

Module switch công nghiệp nhúng 8 cổng GbE + 4 cổng Gigabit quang 3onedata IEM6300-12G

IEM6300-12G is a 12-port layer 2 managed embedded industrial Gigabit Ethernet switch module, which has the characteristics of high integration, small size, rich functions, simple and convenient operation. The product provides 8 Gigabit copper ports, 4 Gigabit fiber ports; Using embedded installation mode, users can customize the PCB floor specifications, through the module pins can choose any Ethernet interface type, to meet the needs of different application sites.

The network management system supports a variety of network protocols and industry standards, such as IPv6, Ring, STP/RSTP/MSTP, DHCP Server/Snooping/Relay, VLAN, QoS, IGMP Snooping, LLDP, Port Trunking and Port Mirroring. It possesses complete management functions and supports Port Configuration, NAS, ACL, Network Diagnosis, Online Upgrade, etc. CLI, WEB, TELNET, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

Hardware adopts low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Tính năng

  • Support 8 10/100/1000Base-T(X) Gigabit copper ports and 4 1000Base-X Gigabit fiber ports
  • Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
  • Support multiple network protocols and industry standards, such as IPv6, STP/RSTP/MSTP, VLAN, QoS, LACP, DHCP, IGMP Snooping, LLDP, ACL, SNMP and MEP.
  • Input voltage: 3.3VDC
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3z for 1000Base-X

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1X for 802.1X Authentication

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP

Management

SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, QoS, DHCP Server, DHCP Relay, Static MAC Address, LLDP, LLDP-MED, User Password, Login Method, File Management, Log Management, Port Statistics, MEP

Security

User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Storm Suppression, DHCP Snooping, Relay Alarm, Loop Protection, Temperature Protection

Switch Function

802.1Q VLAN, Static Aggregation, LACP

Unicast / Multicast

IGMP Snooping,Unicast MAC

Redundancy Technology

Ring, STP/RSTP/MSTP

Troubleshooting

Ping, Ping6, Cable Detection, Port Mirroring, DDMI

Time Management

NTP server, NTP client, Time zone configuration

Interface

Gigabit copper port: 8 10/100/1000Base-T(X)

Gigabit fiber port: 4 1000Base-X, SGMII

Console port: TTL level serial data

Alarm interface: support 2 alarm information inputs and 1 alarm information output

Switch Property

Transmission mode: store and forward

100M forwarding speed: 148810pps

Gigabit forwarding speed: 1488100pps

MAC address: 8K

Buffer: 4Mbit

Backplane bandwidth: 24G

Switch time delay: <10μs

Power Supply

3.3VDC

Power Consumption

No-load: 2.7W (including DEMO board@12VDC)

Full-load: 8.4W (including DEMO board@12VDC)

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Installation: embedded mounting

Dimension (W x H x D): 90mm×10.4mm×72mm

Warranty

3 years

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models Gigabit Copper Port Gigabit Fiber Port Power Supply
IEM6300-12G 8 4

3.3VDC (±5%)
