Module switch công nghiệp nhúng 5 cổng Ethernet + 1 cổng TTL serial + 1 cổng CAN 3Onedata IEM615-1C-1D

Chia sẻ:
Mã sản phẩm: IEM615-1C-1D
Thương hiệu: 3onedata
Tình trạng:

5-port Layer 2 Industrial Ethernet Switch Module

Liên hệ
Mô tả

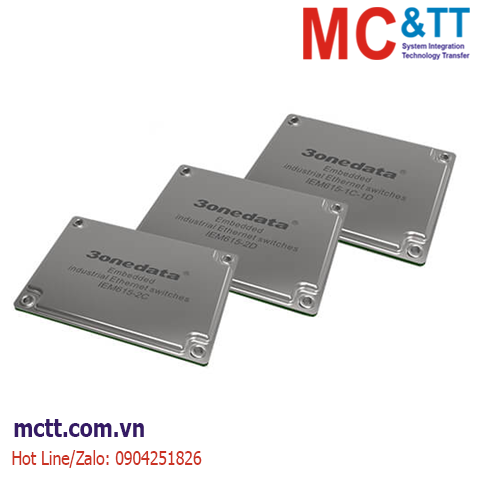

Module switch công nghiệp nhúng 5 cổng Ethernet + 1 cổng TTL serial + 1 cổng CAN 3Onedata IEM615-1C-1D

IEM615 series are 5-port 100M layer 2 managed embedded industrial Ethernet switch modules with 2 serial ports or CAN ports featuring high integration level, small size, rich functions, easy and convenient usage. This series have 3 types of products. It provides 2 serial ports or CAN ports, and 5 100M ports which could be configured to fiber port or copper port as needed. It also adopts embedded mounting that user can custom the specification of PCB motherboard and freely choose Ethernet interface type through module pin to meet the requirements of different scenes.

Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. It has integrated functions of serial port server and CAN server. Each serial port and CAN port support 4 TCP or UDP session connections and multiple operating modes including TCP Server, TCP Client and UDP, etc. CLI, WEB, Telnet, SNMP and other access methods are also supported. The network management system can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Tính năng

  • Support 5 100M fiber/copper ports and 2 serial ports/CAN ports
  • Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms
  • Input voltage: 3.3VDC
  • Support -40~85℃ wide operating temperature range

Thông số kỹ thuật

Standard &Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

Management

SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, DHCP Client, File Management, Port Statistics

Security

Classification of User Permissions, Port Alarm, Power Supply Alarm

Switch Function

802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control

Unicast / Multicast

Static Multicast, IGMP-Snooping

Redundancy Protocol

SW-Ring, STP/RSTP

Interface

100M port: 10/100Base-T(X) or 100Base-FX, fiber/copper port

Console port: TTL level serial data

Alarm port: support 2 alarm information input and output

Serial Port

Interface type: full signal TTL level serial port (RS-232/485/422 optional)

Baud rate: 300-115200bps

Data bit: 5bit, 6bit, 7bit, 8bit

Check bit: None, Even, Odd, Space, Mark

Stop bit: 1bit, 1.5bit, 2bit

CAN Port Interface type: TTL level CAN port

Baud rate: 5-1000kbps

LED Indicator

External indicator, running indicator, port indicator

Switch Property

Transmission mode: store and forward

MAC address: 2K

Packet buffer size: 0.5Mbit

Backplane bandwidth: 1.2G

Switch time delay: <10μs

Power Requirement

3.3VDC(±5%)

Power Consumption Power consumption: <1.5W
Environmental Limit

Operating temperature: -40~85℃

Storage temperature: -40~85℃

Relative humidity: 5%~95%(no condensation)

Physical Characteristic

Installation: embedded mounting (with heat-conducting fin, can be equipped with heatsink)

Dimension (W x H x D): 55mm×9.5mm×40mm

Certification

CE, FCC, RoHS

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models 100M Ethernet Port Serial Port CAN Port Power Supply Range
IEM615-2D 5 2 3.3VDC(±5%)
IEM615-2C 5 2
IEM615-1D-1C 5 1 1
