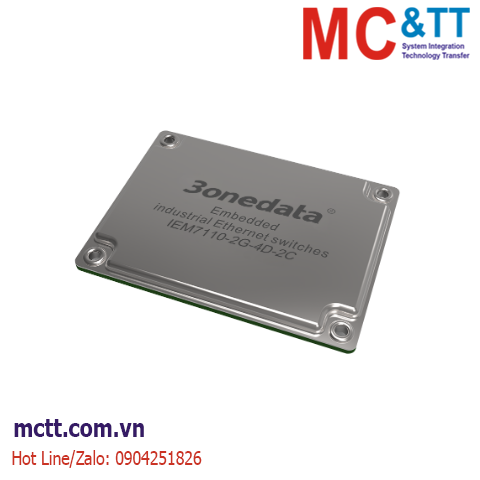

Module switch công nghiệp nhúng 8 cổng 100M + 2 cổng Gigabit + 2 cổng CAN + 4 cổng COM 3onedata IEM7110-2G-4D-2C

Mã sản phẩm: IEM7110-2G-4D-2C

Thương hiệu: 3onedata

Tình trạng:

Embedded Mounting Multi-service Access Managed Industrial Ethernet Switch Module

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Module switch công nghiệp nhúng 8 cổng 100M + 2 cổng Gigabit + 2 cổng CAN + 4 cổng COM 3onedata IEM7110-2G-4D-2C

IEM7110-2G-4D-2C is a multi-service access managed embedded industrial Ethernet switch module, which has the characteristics of high integration, small size, rich functions, simple and convenient. The product provides 4 serial ports, 2 CAN ports, 8 100M and 2 Gigabit Ethernet ports which can be configured to fiber port or copper port as needed; Using embedded installation mode, users can customize the PCB back plane specifications to choose any Ethernet interface types through the module pins, to meet the needs of different application sites.

Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, LLDP, Port Mirroring. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. Each serial port or CAN supports 4 TCP or UDP session connections and multiple work modes like TCP Client, TCP Server, UDP, TCP Auto. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Tính năng

Support 4 serial ports, 2 CAN ports, 8 100M fiber ports or copper ports (optional) and 2 Gigabit fiber ports or copper ports (optional)
Adopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
Input voltage: 3.3VDC (±5%)
Support -40~85℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS
Management	SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics,
Security	User Password, Port Alarm, Power Alarm, Threshold Alarm
Switch Function	802.1Q VLAN, Static Port Aggregation, Bandwidth Management, Flow Control
Unicast / Multicast	Static Multicast, IGMP-Snooping
Redundancy Technology	SW-Ring、STP/RSTP
Interface	Ethernet port 100M port: 10/100Base-T(X) or 100Base-FX 1000M port: 10/100/1000Base-T(X) or 1000Base-X Serial port Interface quantity: 4 RS-485 signal: D+, D-, GND RS-232 signal: DSR, RXD, RTS, TXD, CTS, DTR RS-422 signal: T+, T-, R+, R-, GND Baud rate: 300~115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Directional control: RS-485 adopts Automatic Data Direction Control technology Load capacity: RS-485 supports 32-point polling (customizable 128 points) CAN Port Interface quantity: 2 CAN signals: CAN+, GND, CAN- Protocol support:CAN2.0A, CAN2.0B Work mode: normal, self-test, listen only Work pattern: two-wire half duplex Baud rate: 5kbps~1000kbps Load capacity: support concurrent transmitting of 110 nodes Console port TTL level serial data Alarm interface Support 2 alarm information input/output IO ports
Switch Property	Transmission mode: store and forward 100M forwarding speed: 148810pps Gigabit forwarding speed: 1488100pps MAC address: 8K Buffer: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs
Power Supply	3.3VDC (±5%)
Power Consumption	＜3W
Working Environment	Operating temperature: -40~85℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation)
Physical Characteristic	Installation: embedded mounting Dimension (W x H x D): 72mm×9.7mm×54mm
Authentication	CE, FCC, RoHS
Warranty	3 years

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models	Serial Port	CAN Port	Gigabit Port (Optional Fiber/Copper Port)	100M Port (Optional Fiber/Copper Port)	Power Supply
IEM7110-2G-4D-2C	4	2	2	8	3.3VDC (±5%)
