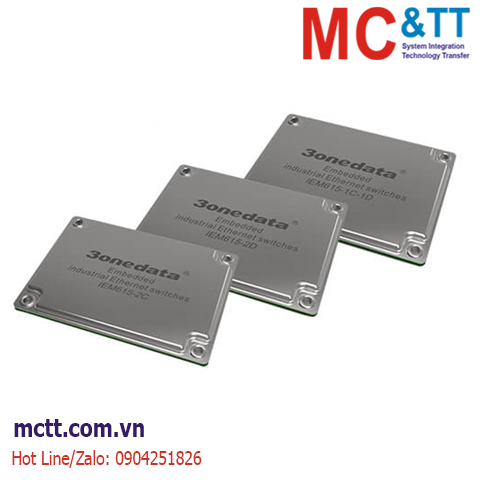

Module switch công nghiệp nhúng 5 cổng Ethernet + 2 cổng TTL serial 3Onedata IEM615-2D
IEM615 series are 5-port 100M layer 2 managed embedded industrial Ethernet switch modules with 2 serial ports or CAN ports featuring high integration level, small size, rich functions, easy and convenient usage. This series have 3 types of products. It provides 2 serial ports or CAN ports, and 5 100M ports which could be configured to fiber port or copper port as needed. It also adopts embedded mounting that user can custom the specification of PCB motherboard and freely choose Ethernet interface type through module pin to meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. It has integrated functions of serial port server and CAN server. Each serial port and CAN port support 4 TCP or UDP session connections and multiple operating modes including TCP Server, TCP Client and UDP, etc. CLI, WEB, Telnet, SNMP and other access methods are also supported. The network management system can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
Tính năng
- Support 5 100M fiber/copper ports and 2 serial ports/CAN ports
- Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms
- Input voltage: 3.3VDC
- Support -40～85℃ wide operating temperature range
Thông số kỹ thuật
| Standard &Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS |
| Management |
SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, DHCP Client, File Management, Port Statistics |
| Security |
Classification of User Permissions, Port Alarm, Power Supply Alarm |
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control |
|
Unicast / Multicast |
Static Multicast, IGMP-Snooping |
|
Redundancy Protocol |
SW-Ring, STP/RSTP |
| Interface |
100M port: 10/100Base-T(X) or 100Base-FX, fiber/copper port
Console port: TTL level serial data
Alarm port: support 2 alarm information input and output |
|
Serial Port |
Interface type: full signal TTL level serial port (RS-232/485/422 optional)
Baud rate: 300-115200bps
Data bit: 5bit, 6bit, 7bit, 8bit
Check bit: None, Even, Odd, Space, Mark
Stop bit: 1bit, 1.5bit, 2bit |
| CAN Port |
Interface type: TTL level CAN port
Baud rate: 5-1000kbps |
| LED Indicator |
External indicator, running indicator, port indicator |
| Switch Property |
Transmission mode: store and forward
MAC address: 2K
Packet buffer size: 0.5Mbit
Backplane bandwidth: 1.2G
Switch time delay: <10μs |
| Power Requirement |
3.3VDC(±5%) |
| Power Consumption |
Power consumption: ＜1.5W |
| Environmental Limit |
Operating temperature: -40~85℃
Storage temperature: -40~85℃
Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic |
Installation: embedded mounting (with heat-conducting fin, can be equipped with heatsink)
Dimension (W x H x D): 55mm×9.5mm×40mm |
| Certification |
CE, FCC, RoHS |
Download
Datasheet
Quick Guide
Thông tin đặt hàng
| Available Models |
100M Ethernet Port |
Serial Port |
CAN Port |
Power Supply Range |
| IEM615-2D |
5 |
2 |
– |
3.3VDC(±5%) |
| IEM615-2C |
5 |
– |
2 |
| IEM615-1D-1C |
5 |
1 |
1 |
