Compression Force Transducer K-450 - Lorenz Messtechnik GmbH
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:
Cảm biến đo lực nén 1 kN 2 kN 5 kN 10 kN 20 kN 50 kN 100 kN 200 kN 500 kN 1000 kN Lorenz K-450
K-450, All-Purpose

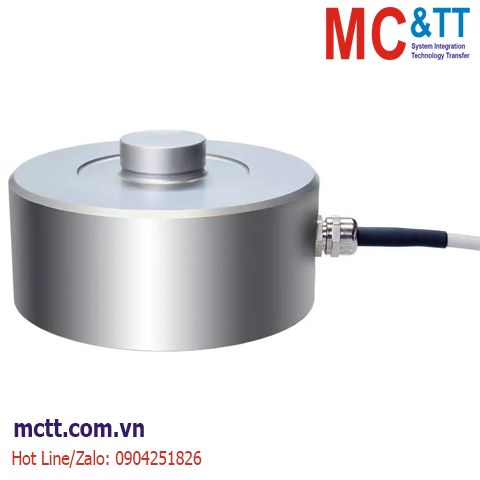

The model K-450 load cell is designed as a flat, circular disc. These load cells are offered for compression only applications where space is limited. This load button is a direct replacement for many of the same type and bolt patterns..
Features:
K-450 - Specifications
Type | Load Button |
Application | Compression |
Full Scale | 1 kN |
2 kN | |
5 kN | |
10 kN | |
20 kN | |
50 kN | |
100 kN | |
200 kN | |
500 kN | |
1000 kN | |
Output | 2 mV/V |
Precision | ±0.1 % FS |
±0.3 % FS | |
Excitation | 2 V - 12 V DC |
IP Rating | IP67 |
Min Temperature | -10 °C |
Max Temperature | 70 °C |
Download
PDF Datasheet: | 080775a_K-450_en.pdf |
---|
