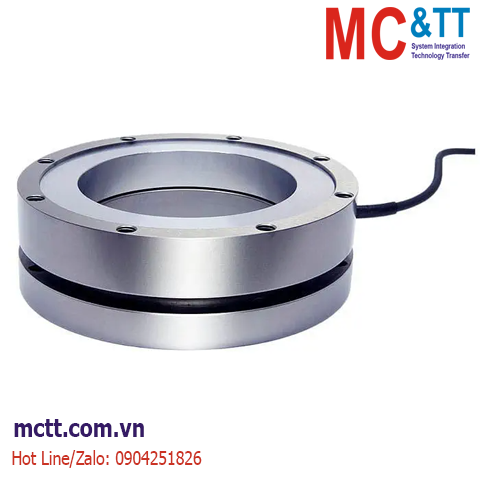

Cảm biến đo lực nén 2 - 100 kN Lorenz K-1250

Chia sẻ:
Mã sản phẩm: K-1250
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression Force Transducer K-1250 - Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực nén 2 - 100 kN Lorenz K-1250

K-1250, Thru Hole
The miniature ring load cells of the K-1250 have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter


  • For Press-In Force Control
  • Tension & Compression
  • Accuracy: ±0.5%
  • Outer Diameter: 70.0mm - 112.0mm
  • Inner Diameter: 33.0mm - 70.0mm
  • Height: 25.0mm - 35.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-1250 - Specifications

Type Thru-Hole
Application Tension & Compression
Full Scale 450 lbs
  1120 lbs
  2200 lbs
  4500 lbs
  11200 lbs
  22000 lbs
Output 1 mV/V
Precision ±0.5 % FS
Excitation 2 V - 12 V DC
IP Rating IP60
Min Temperature 0 °C
Max Temperature 60 °C


PDF Datasheet: 080797a_K-1250_en.pdf
