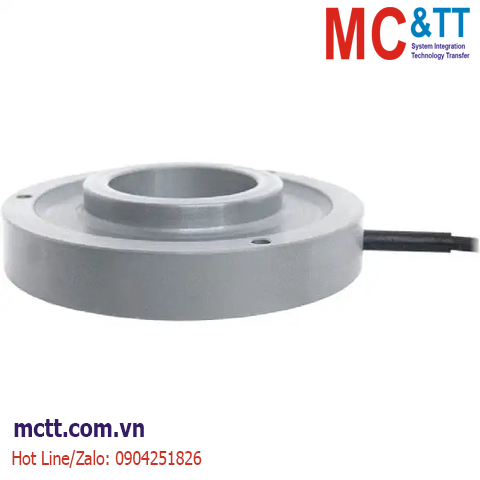

Cảm biến đo lực nén 0.5 - 20 kN Lorenz K-2529

K-2529, Thru-Hole
The K-2529 load cells have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter and height make this.


  • Compression
  • Accuracy: ±1.0%
  • Outer diameter: 73.0mm
  • Inner Diameter: 30.0mm
  • Height: 16.0mm
  • Connection: 3m Integral Cable
  • Aluminium

K-2529 - Specifications

Type Thru-Hole
Application Compression
Full Scale 112 lbs
  220 lbs
  450 lbs
  1120 lbs
  2200 lbs
  4500 lbs
Output 1 mV/V
Precision ±1.0 % FS
Excitation 2 V - 12 V DC
IP Rating IP60
Min Temperature 0 °C
Max Temperature 60 °C


PDF Datasheet: 080789a_K-2529_en.pdf
