Cảm biến đo lực nén 0.2 kN 0.5 kN 1 kN 2 kN 5 kN 10 kN Lorenz K-2528

Chia sẻ:
Mã sản phẩm: K-2528
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression Force Sensor K-2528 - Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực nén 0.2 kN 0.5 kN 1 kN 2 kN 5 kN 10 kN Lorenz K-2528

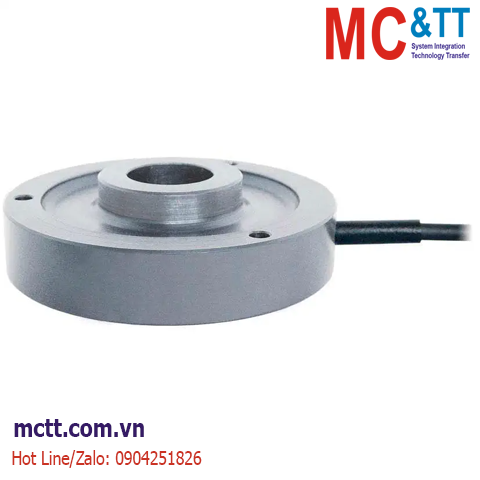

K-2528, Thru-Hole
Depending on the force loading arrangement, the Thru-hole load cell can be used to measure compression only. The compact construction is all welded with aluminium. The sensing element incorporates bonded foil strain gauges of the highest.

Features:

  • For Press-In Force Control
  • Compression
  • Accuracy: ±1.0%
  • Outer Diameter: 58.0mm
  • Inner Diameter: 15.0mm
  • Height: 16.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-2528 - Specifications

Type Thru-Hole
Application Compression
Full Scale 0.2 kN
  0.5 kN
  1 kN
  2 kN
  5 kN
  10 kN
Output 1 mV/V
Precision ±1.0 % FS
Excitation 2 V - 12 V DC
IP Rating IP60
Min Temperature 0 °C
Max Temperature 60 °C

Download

PDF Datasheet: 080787a_K-2528_en.pdf
