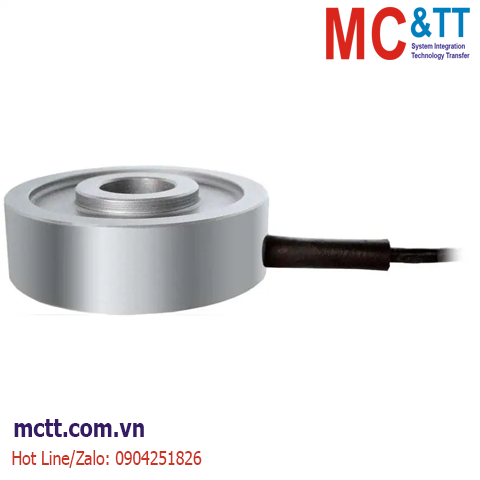

Cảm biến đo lực nén 0.05 - 100 kN Lorenz K-14

Chia sẻ:
Mã sản phẩm: K-14
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression Force Sensor K-14 - Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực nén 0.05 - 100 kN Lorenz K-14

K-14, Thru-Hole
The miniature ring load cell K-14 have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter and...

Features:

  • For Press-In Force Control
  • Compression
  • Accuracy: ±0.5%
  • Outer Diameter: 30.0mm - 78.0mm
  • Inner Diameter: 5.2mm - 27.0mm
  • Height: 9.5mm - 25.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-14 - Specifications

Type Thru-Hole
Application Compression
Full Scale 11.2 lbs
  22 lbs
  45 lbs
  112 lbs
  220 lbs
  450 lbs
  1120 lbs
  2200 lbs
  4500 lbs
  11200 lbs
  22000 lbs
Output 1 mV/V
Precision ±0.5 % FS
Excitation 2 V - 12 V DC
IP Rating IP60
Min Temperature 0 °C
Max Temperature 60 °C

Download

PDF Datasheet: 080791b_K-14_en.pdf
