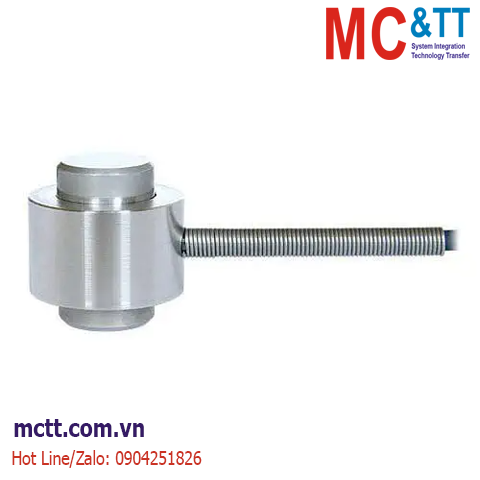

Cảm biến đo lực nén 50 - 150 kN Lorenz K-2283

Chia sẻ:
Mã sản phẩm: K-2283
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression Force Transducer K-2283 - Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực nén 50 - 150 kN Lorenz K-2283

K-2283, Miniature

The load cell measures the compression forces between the circular contact surfaces of plunger and tool. The K-2145 offers high accuracy and high stiffness. It is a High-Precision miniature Load Cell with a very robust construction


  • For Revision of Pressing Tools
  • Compression
  • Accuracy: ±1.0%
  • Outer Diameter: 24.0mm - 39.0mm
  • Height: 25.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-2283 - Specifications

Type Load Button
Application Compression
Full Scale 11200 lbs
  15700 lbs
  20000 lbs
  22000 lbs
  29000 lbs
  34000 lbs
Output 1 mV/V
Precision ±1.0 % FS
Excitation 2 V - 12 V DC
IP Rating IP65
Min Temperature 0 °C
Max Temperature 60 °C


PDF Datasheet: 080785a_K-2283_en.pdf
