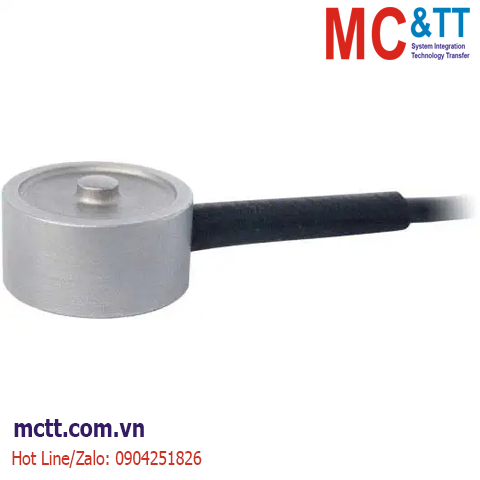

Cảm biến đo lực nén 0.05 kN 0.1 kN 0.2 kN 0.5 kN 1 kN 2 kN Lorenz K-22

Chia sẻ:
Mã sản phẩm: K-22
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Miniature Compression Force Transducer K-22 - Lorenz Messtechnik

Liên hệ
Mô tả

Cảm biến đo lực nén 0.05 kN 0.1 kN 0.2 kN 0.5 kN 1 kN 2 kN Lorenz K-22

K-22, Miniature

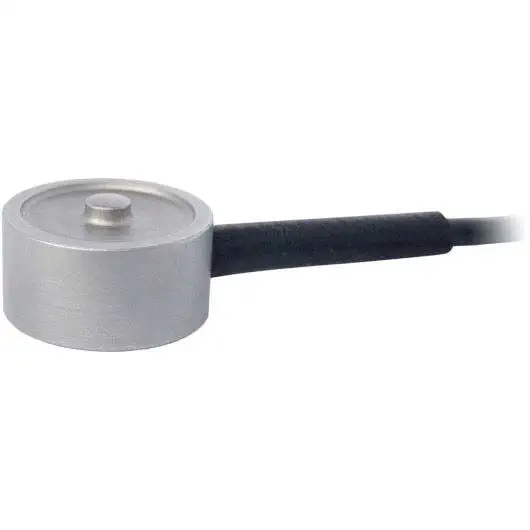

The miniature compression load cell model K-22 is a flat cylindrical disc, the bottom of which is closed with a cover. The load application button for receiving the compression forces is an integrated part of the sensor. A strain gauge full...

Features:

  • Economical
  • Compression
  • Accuracy: ±0.5%
  • Outer Diameter: 16.0mm
  • Height: 9.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-22 - Specifications

Type Load Button
Application Compression
Full Scale 0.05 kN
  0.1 kN
  0.2 kN
  0.5 kN
  1 kN
  2 kN
Output 1 mV/V
Precision ±0.5 % FS
Excitation 2 V - 6 V DC
IP Rating IP65
Min Temperature 0 °C
Max Temperature 60 °C

Download

PDF Datasheet: 080777a_K-22_en.pdf
