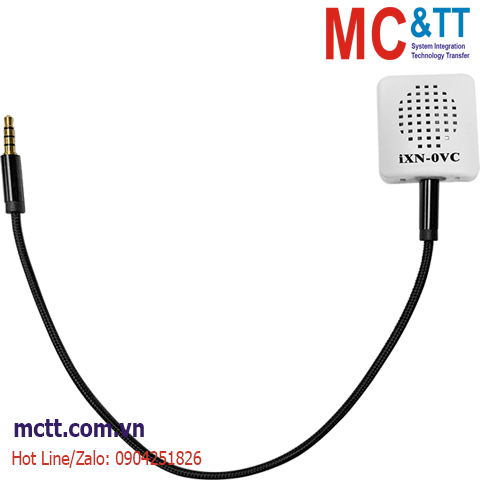

Module cảm biến không dây đo CO2e/TVOC ICP DAS iXN-0VC CR
Feature
Introduction
In order to upgrade the flexibility and extensibility of iWSN environmental sensing module and fit various applications, the iiXN-0VC is developed to connect to the iWSN environmental sensing module, it can offer CO2e and TVOC measurement function. The iXN-0VC is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-0VC provides wall-mount mechanism and magnet adsorption for installation.
Application
Factory environmental monitoring system,
Specifications
| CO2e Measurement |
| Rnge |
400 ppm to 60000 ppm |
| Resolution |
1 ppm (400 ppm~ 1479 ppm)
3 ppm (1479 ppm~ 5144 ppm)
9 ppm (5144 ppm~ 17597 ppm)
31 ppm (17597 ppm~ 60000 ppm) |
| TVOC Measurement |
| Range |
0 ppb to 60000 ppb |
| Resolution |
1 ppb (0 ppb~ 2008 ppb)
6 ppb (2008 ppb~ 11110 ppb)
32 ppb (11110 ppb~ 60000 ppb) |
| Power |
| Consumption |
0.16W |
| Input Type |
iWSN environmental sensing module provides power through the audio line. |
| Mechanical |
| Dimensions (mm) |
25 x 30 x 20.2 (W x L x H) |
| Installation |
Wall-mount or magnet adsorption |
| Cable Length |
27 cm |
| Environment |
| Operating Temperature |
0 °C ~ +45 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iXN-0VC CR |
iWSN CO2e/TVOC sensing module, 27 cm cable (RoHS) |
