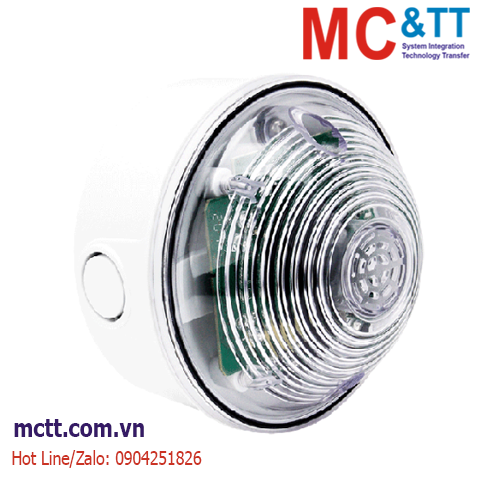

Module còi báo động không dây ICP DAS iSOS-ALM-Horn CR
Feature
- Provide wireless trigger alarm function
- With Ultra-Bright LED
- Selectable 4 alarm tones
- Supports 433MHz radio frequency
- Selectable 16 radio frequency channels
Introduction
iSOS-ALM-Horn is a wireless audible visual alarm siren used in the iSOS emergency rescue system. It supports Sub-1G wireless communication interface, which can obtain trigger signals from the wireless alarm system and activate siren and flash warnings to achieve a deterrent effect and improve personal safety protection. iSOS-ALM-Horn has a built-in ultra-bright LED light and provides 4 selectable alarm tones and a maximum siren sound pressure level of 120dB. In addition, 6 sets of ID trigger settings are provided to select the iSOS series module to activate the sound and light alarm. They are suitable for use in public toilets, hospitals, campuses, parking lots, and other areas.
Application
Wireless Emergency Alert System.
Specifications
| RF |
| Channels |
0 ~ 15 (Selectable by DIP Switch) |
| Group ID |
0 ~ 3 (Selectable by DIP Switch) |
| Radio Frequency |
433.1000 ~ 434.6000 MHz |
| Transmission Power |
9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) |
50 m |
| Node ID |
1 ~ 31 configured by DIP switch |
| Antenna |
| Type |
Built-in Omni-directional antenna |
| Alarm Output |
| LED |
Water clear upper cover with 8 Blue + 8 RED UltraBright LED |
| LPiezo Transducer Pressure Level |
120 ±5 dB @10cm/3.0 KHz (W/O waterproof membrane) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.6 W |
| Mechanical |
| Dimensions (mm) |
120 x 120 x 86(W x L x H) |
| Installation |
Wall-mount |
| Environment |
| Operating Temperature |
-25℃ ~ +75℃ |
| Humidity |
10 ~ 90% RH(Non-condensing) |
Download
Datasheet
Documents
Ordering Information
| iSOS-ALM-Horn CR |
iSOS wireless alarm siren module (RoHS) (Asia Only) |
