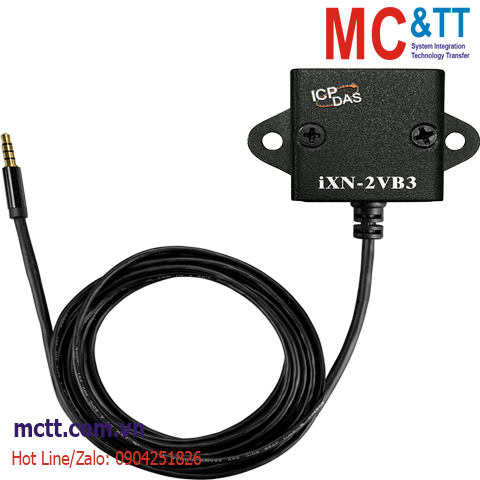

Module cảm biến không dây đo rung 3 trục ICP DAS iXN-2VB3 CR
Feature
- Supports 3-axis vibration measurement
- Sensor type: 3-axis MEMS
- Frequency Range: 10 Hz to 500 Hz
- Vibration Measuring Range: ±8g
- Data Type (g): x, y, z axes of the RMS, the maximum value; triaxial vector value
- Powered by iWSN sensing module
- Offers wall-mount mechanism and magnet for installation
Introduction
In order to upgrade the flexibility and extensibility of iWSN environmental sensing module and fit various applications, the iXN-2VB3 is developed to connect to the iWSN environmental sensing module, it can offer 3-axis vibration measurement function. The iXN-2VB3 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-2VB3 provides wall-mount mechanism and magnet adsorption for installation.
Application
Factory environmental monitoring system,
Specifications
| Vibration Measurement |
| Sensor Type |
3-axis MEMS |
| Data Type |
x, y, z axes of the RMS,
x, y, z axes of the maximum value,
triaxial vector value |
| Amplitude Range |
±8g |
| Frequency Range |
10 Hz to 500 Hz |
| Power |
| Consumption |
0.024 W |
| Input Type |
Powered by a iWSN environmental sensing module through the audio line. |
| Mechanical |
| Dimensions (mm) |
51 x 30 x 15 (W x L x H) |
| Installation |
Wall-mount or magnet adsorption |
| Cable Length |
150 cm |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iXN-2VB3 CR |
iWSN 3-axis vibration sensing module, 150 cm cable (RoHS) |
