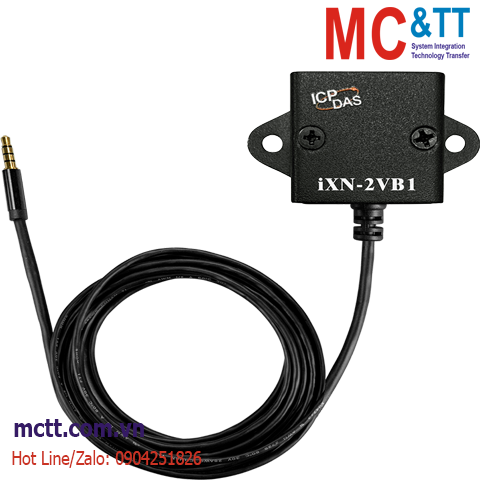

Module cảm biến không dây đo rung 1 trục ICP DAS iXN-2VB1 CR

Chia sẻ:
Mã sản phẩm: iXN-2VB1
Thương hiệu: ICP DAS
Tình trạng:

iWSN 1-axis vibration sensing module

Liên hệ
Mô tả

Module cảm biến không dây đo rung 1 trục ICP DAS iXN-2VB1 CR

Feature

  • Supports 1-axis vibration measurement
  • Sensor type: 1-axis MEMS
  • Frequency Range: 10 Hz to 1 kHz
  • Vibration Measuring Range: ±8g
  • Data Type (g): Uniaxial RMS, Maximum
  • Powered by iWSN sensing module
  • Offers wall-mount mechanism and magnet for installation

Introduction

In order to upgrade the flexibility and extensibility of WSN environmental sensing module and fit various applications, the iXN-2VB1 is developed to connect to the iWSN environmental sensing module, it can offer 1-axis vibration measurement function. The iXN-2VB1 is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-2VB1 provides wall-mount mechanism and magnet adsorption for installation.

Application

Factory environmental monitoring system,

Specifications

Vibration Measurement
Sensor Type 1-axis MEMS
Data Type Uniaxial RMS, Maximum value
Amplitude Range ±8g
Frequency Range 10 Hz to 1 kHz
Power
Consumption 0.15 W
Input Type iWSN environmental sensing module provides power through the audio line.
Mechanical
Dimensions (mm) 51 x 30 x 15 (W x L x H)
Installation Wall-mount or magnet adsorption
Cable Length 150 cm
Environment
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iXN-2VB1     CR  iWSN 1-axis vibration sensing module, 150 cm cable (RoHS)
