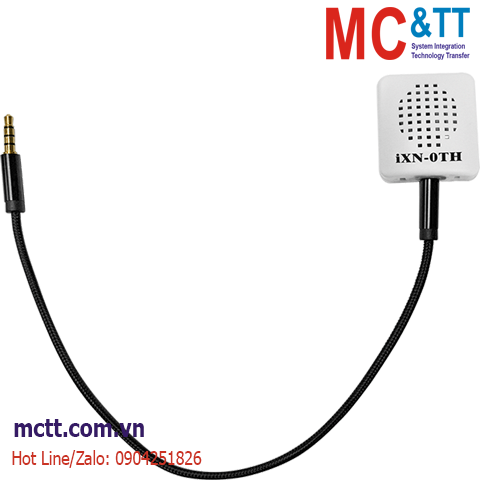

Module cảm biến không dây đo nhiệt độ + độ ẩm ICP DAS iXN-0TH CR
Feature
- Measurement Ranges: -20 ~ +60°C and 10 ~ 95% RH
- Accuracy: +/-0.3°C; +/-1.8% RH
- Powered by iWSN sensing module
- Offers wall-mount mechanism and magnet for installation
Introduction
In order to upgrade the flexibility and extensibility of iWSN environmental sensing module and fit various applications, the iXN-0TH is developed to connect to the iWSN environmental sensing module, it can offer temperature and humidity measurement function. The iXN-0TH is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-0TH provides wall-mount mechanism and magnet adsorption for installation.
Application
Environmental temperature and humidity monitoring system for electronics factory
Specifications
| Temperature Measurement |
| Range |
-20 ~ +60°C |
| Resolution |
0.1°C |
| Accuracy |
Typical: ±0.3°C |
| Humidity Measurement |
| Range |
10 ~ 95% RH |
| Resolution |
0.1% RH |
| Accuracy |
Typical: ±3% RH @ 20 ~ 80% RH |
| Power |
| Consumption |
0.005 W |
| Input Type |
iWSN environmental sensing module provides power through the audio line. |
| Mechanical |
| Dimensions (mm) |
25 x 20.2 x 30 (W x L x H) |
| Installation |
Wall-mount or magnet adsorption |
| Cable Length |
27 cm |
| Environment |
| Operating Temperature |
-20 °C ~ +60 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iXN-0TH CR |
iWSN temperature and humidity sensing module, 27 cm cable (RoHS) |
