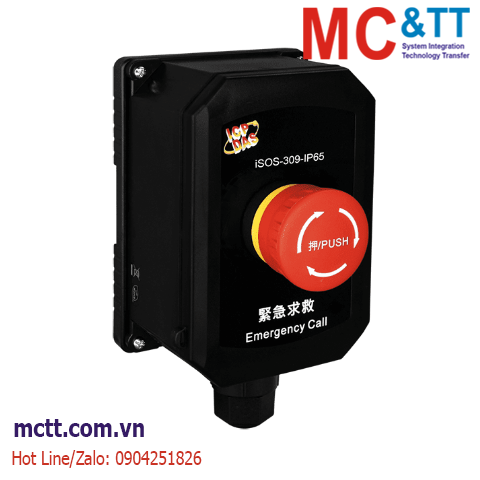

Module nút bấm cảnh báo khẩn cấp không dây ICP DAS iSOS-309-IP65 CR
Feature
- Provide emergency message for help report function
- Powered by built-in rechargeable Lithium Ion battery
- Supports Dye-sensitized cell charging function
- Support 433MHz Radio Frequency
- Selectable 16 Radio Frequency Channels
- Active online report
- Provide wall-mounting Installation
- IP65 rated waterproof
Introduction
The iSOS-309-IP65 is a waterproof light charging wireless emergency call button product with a built-in rechargeable 16340 lithium-ion battery. With SP-S2-DS dye-sensitized charging module, it can be charged under indoor light conditions and can be used continuously without replacing the battery. Through the Sub-1G RF communication interface, it can approach real wireless deployment. It provides emergency help return function and improves personal safety protection. This system is very suitable for public area construction. For example, public toilets, hospitals, nursing homes, open campuses, large parking lots, etc. iSOS-309-IP65 delivers reliable electricity and reduces the cost of wiring. Realize emergency information transmission, meet low energy consumption, wireless communication, and emergency monitoring, etc., greatly reduce the time and human resources required for system construction and maintenance.
Application
Wireless Emergency Alert System.
Specifications
| RF |
| Channels |
0 ~ 15 (Selectable by DIP Switch) |
| Group ID |
0 ~ 3 (Selectable by DIP Switch) |
| Radio Frequency |
433.1000 ~ 434.6000 MHz |
| Transmission Power |
9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Cycle |
1 / 10 / 30 / 60 Secs. 3 / 5 / 10 / 30 Mins. (Selectable by DIP witch)
1 Sec.(Emergency Triggered Only) |
| Transmission Distance (LoS) |
50 m |
| Node ID |
1 ~ 31 configured by DIP switch |
| Antenna |
| Type |
Built-in Omni-directional antenna |
| Power |
| Consumption |
0.577mAh@1 Day |
| Battery |
16340 lithium-ion battery(3.2 VDC, 400mAh) charged by SP-S2-DS module |
| Mechanical |
| Dimensions (mm) |
90 x 167 x103 (W x L x H) |
| Installation |
Wall-mount |
| Ingress Protection Rating |
IP65 |
| Environment |
| Operating Temperature |
-25℃ ~ +60℃ |
| Storage Temperature |
-30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included) |
| Humidity |
10 ~ 90% RH(Non-condensing) |
Download
Datasheet
Documents
Ordering Information
| iSOS-309-IP65 CR |
iSOS waterproof light charging emergency call button module (RoHS) (Asia Only)
*Without SP-S2-DS module |
