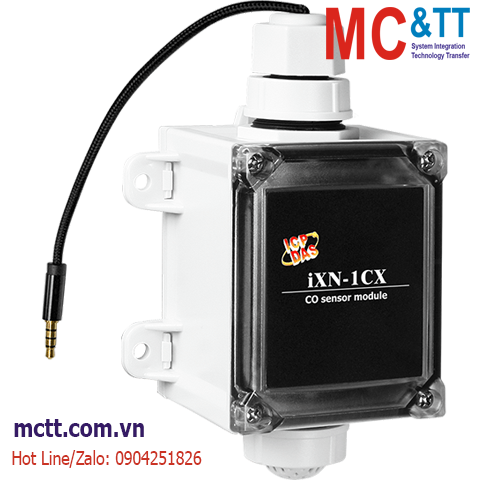

Module cảm biến không dây đo CO ICP DAS iXN-1CX CR
Feature
- Supports CO measurement
- Measurement Ranges: CO 0 ppm to 1000 ppm
- Powered by iWSN sensing module
- Offers DIN-rail, wall-mount mechanism and magnet for installation
Introduction
In order to upgrade the flexibility and extensibility of iWSN environmental sensing module and fit various applications, the iXN-1CX is developed to connect to the iWSN environmental sensing module, it can offer CO measurement function. The iXN-1CX is energized by iWSN environmental sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN-1CX provides DIN-rail, wall-mount mechanism and magnet adsorption for installation.
Application
Factory environmental monitoring system,
Specifications
| CO Measurement |
| Range |
0 ppm to 1000 ppm |
| Resolution |
1 ppm |
| Power |
| Consumption |
0.017 W |
| Input Type |
iWSN environmental sensing module provides power through the audio line. |
| Mechanical |
| Dimensions (mm) |
91 x 131 x 55 (W x L x H) |
| Installation |
DIN-Rail or Wall-mount or magnet adsorption |
| Cable Length |
22 cm |
| Environment |
| Operating Temperature |
0 °C ~ +45 °C |
| Storage Temperature |
30 ~ +80°C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iXN-1CX CR |
iWSN CO sensing module, 22 cm cable (RoHS) |
