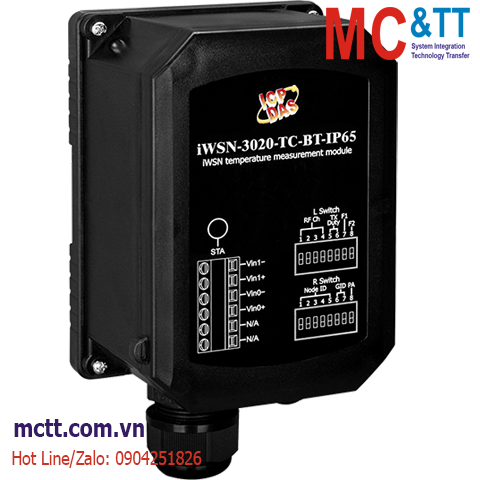

Module thu thập dữ liệu không dây iWSN + 2 kênh Thermocouple K ICP DAS iWSN-3020-TC-BT-IP65 CR
Feature
- Two K-Type Thermocouple input channels
- Range of temperature measurement：0℃ ~ 150℃
- Accuracy of temperature measurement：±2℃
- Uses 433 MHz radio frequency for communication
- 16 RF Channels and 4 Group ID, consist of maximum 64 RF sub-networks
- Built-in disposable lithium battery
- Supports wall-mount or DIN-Rail or magnet adsorption for installation
Introduction
iWSN-3020-TC-BT-IP65 is a wireless temperature sensing module in the iWSN series. It provides IP65 grade of dust-proof and water-proof, 433 MHz wireless communication interface, and supports 2-channel K-Type thermocouple temperature measurement. It will actively periodically response the measured temperature to the iWSN wireless data concentrator. This module has a built-in disposable lithium battery for power supply, additional power supply is not required. It is suitable for environments with extremely thick dust, no power supply, and difficult wiring restrictions. That is contribute to real wireless deployment. Furthermore, this module can set 16 wireless channels and 4 Group ID, which is helpful for distinguishing and controlling 433 MHz wireless networks. Users only need to uses the DIP switch for configuration to complete the settings, that let the module to be adjusted and maintained even simpler.
Application
Specifications
| LED Indicators |
| Status |
1 x STA |
| Temperature Measurement |
| Sensor Type |
Thermocouple K-Type |
| Channels |
2 |
| Range |
0 °C ~ +150 °C |
| Accuracy |
±2 °C |
| RF |
| Channels |
0 ~ 15 configured by DIP switch |
| Group ID |
0 ~ 3 configured by DIP switch |
| Radio Frequency |
433MHz |
| Transmission Distance (LoS) |
100 m |
| Node ID |
1 ~ 31 configured by DIP switch |
| Working Duty |
1 sec, 10 sec, 30 sec and 60 sec
(configured by DIP switch) |
| Power |
| Battery |
CR123A (3.0 V, 1700mAh) x 2
Battery Life:
1 year (Working Duty: 10 sec)
3 years (Working Duty: 30 sec)
5 years (Working Duty: 60 sec) |
| Mechanical |
| Dimensions (mm) |
95 x 165 x 75 (W x L x H) |
| Installation |
Wall-mount or DIN-Rail or magnet adsorption |
| Ingress Protection Rating |
IP65 |
| Environment |
| Operating Temperature |
0 °C ~ +60 °C |
| Storage Temperature |
-20 °C ~ +45 °C |
| Humidity |
20 ~ 65% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iWSN-3020-TC-BT-IP65 CR |
iWSN temperature measurement module with two K-Type Thermocouple input channels (RoHS) (Asia Only) |
