Bộ thu thập dữ liệu không dây iWSN ICP DAS iWSN-200R CR

Chia sẻ:
Mã sản phẩm: iWSN-200R
Thương hiệu: ICP DAS
Tình trạng:

iWSN Data Concentrator with 1-port RS-485 and 1-Channel Relay Output (Asia Only)

Liên hệ
Mô tả

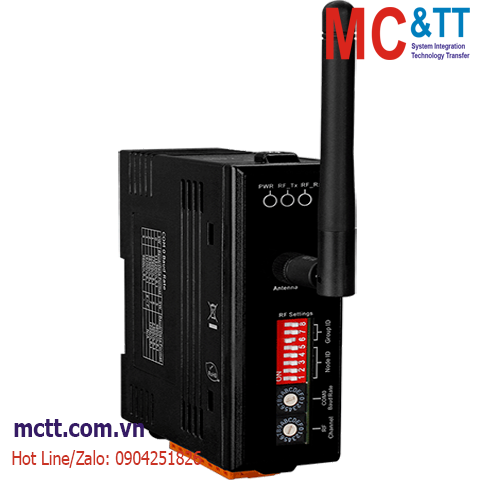

Bộ thu thập dữ liệu không dây iWSN ICP DAS iWSN-200R CR

Feature

  • 433 MHz Radio Frequency
  • 16 RF Channels
  • Supported Modbus RTU protocol (Slave)
  • Supported data buffers of 31 iWSN sensors
  • 1 Channel Relay Output

Introduction

iWSN-200R is an iWSN wireless data concentrator, it supports one 433MHz wireless communication interface and one RS-485 communication interface. The module supports Modbus RTU protocol slave, the main function can receive and buffer wireless data from up to 31 iWSN sensors. The user can send Modbus RTU command to read the sensor’s data by RS-485 interface. For wireless communication, the module supports up to 16 wireless channels and 8 groups ID which can be set by rotary switch and DIP switch which is convenient for users to divide and manage the wireless network of 433MHz frequency. It can also automatically control relay output to react to emergency distress packages sent by iSOS series, so that the adjustment and maintenance of the modules can be easier.

Application

Specifications

EMS Protection
EFT (IEC 61000-4-4) +/- 1kV
ESD (IEC 61000-4-2) +/- 4kV Contact
Surge (IEC 61000-4-5) +/- 1kV
LED Indicators
Status 1 x Power
1 x RF_Tx
1 x RF_Rx
RF
Channels 0 to 15 (configured by rotary switch)
Radio Frequency 433MHz
Transmission Power 9±1dBm (PA Off) / 18±1dBm (PA On)
Transmission Distance (LoS) 100m (Line of sign, LoS)
Antenna
Connector RP-SMA Male (Plug)
Dimensions (mm) 10 x 108 (Ø x L)
Type 0 dBi, Omni-Directional
Relay Output
Channels 1 (Form A)
Type Power Relay, (SPST N.O.)
Contact Rating 5A @ 250VAC
5A @ 30VDC
Operate Time 10ms (Max.)
Release Time 5ms (Max.)
Electrical Endurance 2 × 10^7 ops
Mechanical Endurance 1 × 10^5 ops.
COM Ports
Ports 1 x RS-485
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps, N81
Protocol Modbus RTU
Node Address 1 to 31
Power
Consumption 1W Max.
Input Type +10 to +30 VDC
Mechanical
Dimensions (mm) 108 x 84 x 33 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 to +75°C
Storage Temperature -30 to +80°C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iWSN-200R     CR  iWSN Data Concentrator with 1-port RS-485 and 1-Channel Relay Output (RoHS) (Asia Only)
