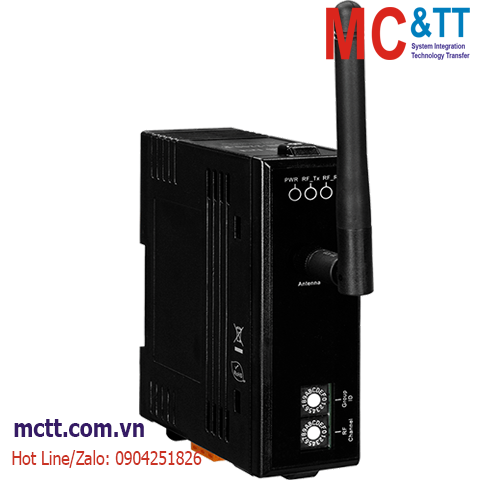

Bộ thu thập dữ liệu không dây iWSN ICP DAS iWSN-200E CR
Feature
- 433 MHz Radio Frequency
- 16 RF Channels
- Supported Modbus TCP protocol (Slave)
- Supported data buffers of 31 iWSN sensors
Introduction
The iWSN-200E is an iWSN wireless data concentrators, it supports one 433MHz wireless communication interface and one Ethernet communication interface with PoE. The module supports Modbus TCP protocol slave, the main function can receive and buffer 31 iWSN sensor’s data by wireless, and the user can transmit Modbus TCP command to read the sensor’s data by Ethernet interface. In wireless interface, the series modules support 16 wireless channels and 8 groups ID by rotary switch and DIP switch setting, the user can easy to use them to divide and manage the wireless network of 433MHz frequency.
Application
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
+/- 1kV |
| ESD (IEC 61000-4-2) |
+/- 4kV Contact |
| Surge (IEC 61000-4-5) |
+/- 1kV |
| LED Indicators |
| Status |
1 x Power
1 x RF_Tx
1 x RF_Rx |
| RF |
| Channels |
0 to 15 (configured by rotary switch) |
| Radio Frequency |
433MHz |
| Transmission Power |
9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) |
100m (Line of sign, LoS) |
| Antenna |
| Connector |
RP-SMA Male (Plug) |
| Dimensions (mm) |
10 x 108 (Ø x L) |
| Type |
0 dBi, Omni-Directional |
| Ethernet |
| Ports |
1 x RJ-45
10/100Mbps |
| Protocol |
Modbus TCP |
| Power |
| Consumption |
1W Max. |
| Powered from PoE |
IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
+10 to +30 VDC |
| Mechanical |
| Dimensions (mm) |
108 x 84 x 33 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iWSN-200E CR |
iWSN data concentrator with PoE Ethernet port (RoHS) (Asia Only) |
