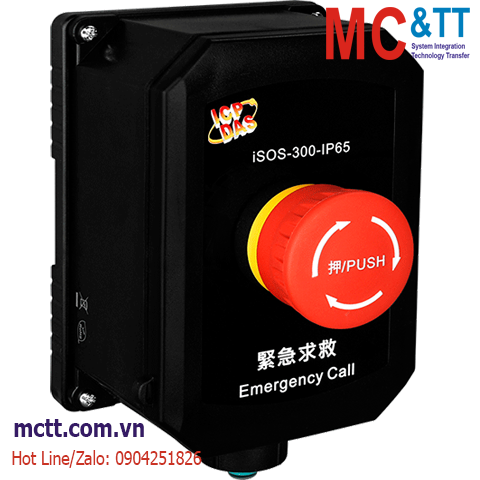

Module nút bấm cảnh báo khẩn cấp không dây ICP DAS iSOS-300-IP65 CR
Feature
- Provide emergency message for help report function
- Powered by built-in disposable lithium batteries
- Support 433MHz Radio Frequency
- Selectable 16 Radio Frequency Channels
- Active online report
- Provide wall-mounting Installation
- IP65 rated waterproof
Introduction
iSOS-300-IP65 is a wireless emergency call button product, by means of sub-1G RF communication interface, it can approach the real wireless deployment. It provides emergency help return function, improve personal safety protection. This system is very suitable for public area construction. For example, public toilet, hospital, nursing homes, open campus, large parking lots and etc. iSOS-300-IP65 installs a CR-123A battery delivers reliable electricity and reduces the cost of wiring. Realize emergency information transmission, meet low energy consumption, wireless communication and emergency monitoring, etc., greatly reduce the time and human resources required for system construction and maintenance.
Application
Wireless Emergency Alert System.
Specifications
| RF |
| Channels |
0 ~ 15 (Selectable by DIP Switch) |
| Group ID |
0 ~ 3 (Selectable by DIP Switch) |
| Radio Frequency |
433.1000 ~ 434.6000 MHz |
| Transmission Power |
9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Cycle |
1 / 10 / 30 / 60 Secs. 3 / 5 / 10 / 30 Mins. (Selectable by DIP Switch)
1 Sec.(Emergency Triggered Only) |
| Transmission Distance (LoS) |
50 m |
| Node ID |
1 ~ 31 configured by DIP switch |
| Antenna |
| Type |
0 dBi Spring antenna
(Omni-directional) |
| Power |
| Consumption |
0.577mAh@1 Day |
| Battery |
1 x CR123A (3.0 VDC)
Battery Life: 2 years (Working Duty: 1 Min.)90 x 150 x 103(W x L x H) |
| Mechanical |
| Dimensions (mm) |
90 x 150 x 103(W x L x H) |
| Installation |
Wall-mount |
| Ingress Protection Rating |
IP65 |
| Environment |
| Operating Temperature |
-25℃ ~ +60℃ |
| Storage Temperature |
-30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included) |
| Humidity |
20 ~ 65% RH(Non-condensing) |
Download
Datasheet
Documents
Ordering Information
| iSOS-300-IP65 CR |
iSOS waterproof emergency call button module (RoHS) (Asia Only) |
