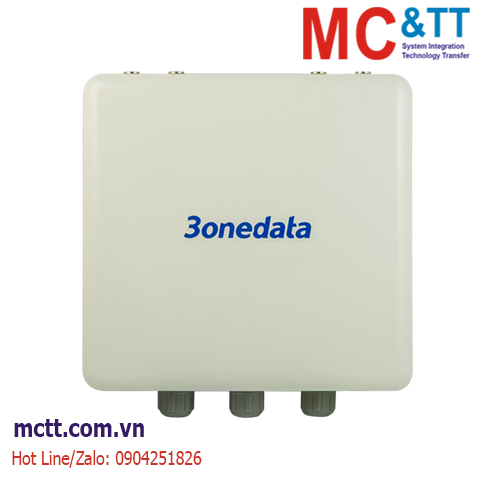

Router công nghiệp 5G 1 cổng WAN + 1 cổng LAN + Wi-Fi 3Onedata ICPE2600A-BW-8A25-2GT-PDP12_48

Chia sẻ:
Mã sản phẩm: ICPE2600A-BW-8A25-2GT-PDP12_48
Thương hiệu: 3onedata
Tình trạng:

Industrial 5G Wireless Router

Liên hệ
Mô tả

Router công nghiệp 5G 1 cổng WAN + 1 cổng LAN + Wi-Fi 3Onedata ICPE2600A-BW-8A25-2GT-PDP12_48

ICPE2600 series is industrial 5G wireless router. Its PoE power supply conforms to IEEE802.3af/at protocol standard. This series has two products, provides Gigabit PoE WAN, Gigabit LAN, 2.4G antenna interfaces, 5.8G antenna interfaces and 5G Sub-6G antenna interfaces. They also adopt wall mounting or pole mounting, which can meet the requirements of different application scenes.

Network management supports multiple software functions, like 3G/4G/5G Cellular WAN, Ethernet WAN, ICMP Link Test, Link Backup, Dynamic Domain Name, Routing Table Setting, WLAN Setting, Port Forwarding, Port Redirection, DMZ Settings, UPnP Setting, VRRP, RIP, OSPF, Static DHCP, QoS etc. It also supports firewall functions, such as IP Filtering, MAC Filtering, URL Filtering and Keyword Filtering and VPN tunneling functions including GRE, IPSec, PPTP, L2TP. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

RESET button can realize device reboot and one-key factory default restoration. All components are industrial grade, and the protection grade is IP68, which can adapt to the harsh outdoor environment. It can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.

Tính năng

  • Support 1 Gigabit PoE WAN, 1 Gigabit LAN, 2 2.4G antenna interfaces, 2 5.8G antenna interfaces and 4 5G Sub- 6G antenna interfaces, which can meet the high bandwidth requirement of industry application.
  • Support 5G NR cellular wireless network, compatible with 3G/4G LTE all networks
  • Support 2.4GHz and 5.8GHz dual bands
  • Support 12~48VDC power supply input , and WAN port supports 48VDC PoE power supply input
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol IEEE 802.3 for 10Base-T
IEEE802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
3GPP Rel-15 for 5G NR
3GPP Rel-14 for 4G LTX
3GPP Rel-18 for 3G WCDMA
IEEE802.11b/g/n/a/ac for WLAN
IEEE802.11i for wireless security
IEEE802.11r for fast roaming
IEEE802.3af/at for PoE/PoE+
Network Settings WAN Network, Wireless WiFi, PPPoE Dialing, Link Backup, Dynamic Domain Name, Routing Table, Wireless Client Filtering, Port Forwarding , Port Redirection, DMZ Settings, UPnP Settings, Static DHCP, QoS, VRRP, RIP, OSPF
Cellular network 3G/4G/5G cellular network, network type 5G NR / LTE FDD/ LTE TDD/ WCDMA / TD-SCDMA / CDMA / EVDO
Firewall IP Filtering, MAC Filtering, URL Filtering and Keyword Filtering
System Management Time Settings, Access Settings, Timed Restart, Backup Recovery, Log Management, Firmware Upgrade
VPN Tunnel GRE, PPTP Client/Server, L2TP Client/Server, IPSec
Troubleshooting System Log, Ping Test and Route Tracking
WiFi Radio Frequency 802.11B/g/n: 2.412GHz~2.4835GHz
802.11Ac/n/a: 5.18GHz~5.825GHz
RF power output: 20dBm
Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
WiFi Receiving Sensitivity 802.11n_HT40: -82dBm@MCS0,-64dBm@MCS7
802.11n_HT20: -85dBm@MCS0,-67dBm@MCS7
802.11g/a: -91dBm@6Mbps,-72dBm@54Mbps
802.11b: -93dBm@1Mbps,-87dBm@11Mbps
802.11ac: -84dBm@MCS0,-59dBm@MCS9
WiFi Transmitting Power 802.11n_HT40: 23dBm@MCS0,20dBm@MCS7
802.11n_HT20: 23dBm@MCS0,20dBm@MCS7
802.11g/a: 23dBm@6Mbps,20dBm@54Mbps
802.11b: 23dBm@1Mbps,20dBm@11Mbps
802.11ac: 23dBm@MCS0,20dBm@MCS9
5G NR Operating Frequency Band

ICPE2600-BW-8A25-2GT-PDP12_48:
● 5G NR: n78/n79/n41
● 4G LTE: B1/B3/B5/B8/B34/B38/B39/B40/B41
● 3G WCDMA: B1/B8

ICPE2600A-BW-8A25-2GT-PDP12_48:
● 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
● 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
● 4G LTE-TDD: B34/B38/39/B40/B41/B42/B48
● 3G WCDMA: B1/B2/B3/B4/B5/B6/B8/B19

5G NR Bandwidth (downward, upward)

ICPE2600-BW-8A25-2GT-PDP12_48:
● 5G NR:DL 2Gbps; UL 230Mbps (Theoretical rate)
● LTE-TDD:DL 1Gbps;UL 30Mbps
● LTE-FDD:DL 600Mbps;UL 75Mbps
● 3G(DC-HSPA+):DL 42Mbps;UL 5.76Mbps
● 3G(HSPA+):DL 21Mbps;UL 5.76Mbps

ICPE2600A-BW-8A25-2GT-PDP12_48:
● 5G SA:DL 2.1Gbps;UL 900Mbps
● 5G NSA:DL 2.5Gbps;UL 650Mbps
● LTE:DL 1Gbps;UL 200Mbps
● WCDMA:DL 42Mbps;UL 5.76Mbps

Interface

WAN port: 1 10/100/1000Base-T(X) RJ45port, support POE 48VDC input power supply

LAN port: 1 10/100/1000Base-T(X) RJ45 port

Antenna: 2 2.4G N-K type (Female) interfaces, 2 5.8G N-K type (Female) interfaces, 4 5G Sub-6G N-K type (Female) interfaces

SIM cart slot: 1 Micro SIM card slot and 1 Nano SIM card slot, redundant backup

Indicator Running status indicator, WLAN indicator, 5G indicator, WLAN indicator, LAN indicator, 5G signal strength indicator
Power Supply

WAN port: supports PoE 48VDC power receiving, which conforms to IEEE802.3af/at standard

Power supply terminal: 12~48VDC, support non-polarity, using 3-pin 5.08mm pitch terminal with waterproof plug

Power Consumption
Available Models No-load Full-load
ICPE2600-BW-8A25-2GT-PDP12_48 5.8W 18.3W
ICPE2600A-BW-8A25-2GT-PDP12_48 5.5W 15.9W
Working Environment Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic Housing: IP68 protection, metal
Installation: Wall mounting or pole mounting
Dimension (L × W × H): 275mm×76mm×245mm
Weight: 3kg
Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge: ±15kV
Contact discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient), Level 4
Power supply: ±4kV
Ethernet interface: ±2kV

IEC 61000-4-5 (Surge), Level 4
Power supply: common mode±4kV, differential mode±2kV
Ethernet interface: ±4kV

Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

MTBF >250000 hours
Authentication CE, FCC, RoHS

Thông tin đặt hàng

Models Gigabit PoE WAN Gigabit LAN 2.4G WIFI Antenna Interface 5.8G Antenna Interface 5G Sub-6G Antenna Interface Power Supply
ICPE2600-BW-8A25-2GT-PDP12_48 1 1 2 2 4 12~48VDC Or PoE 48VDC
ICPE2600A-BW-8A25-2GT-PDP12_48 1 1 2 2 4
