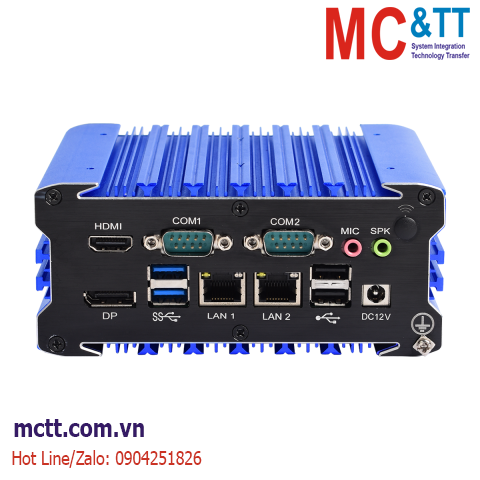

Máy tính nhúng công nghiệp không quạt (2 LAN + 2 COM) TP-IPC IBOX-103-2L2C
The IBOX-103-2L2C system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
Tính năng
- Full aluminum alloy anti-interference structure
- Modular parts design with strong scalability
- Fully enclosed with fanless cooling system
- Cable-free design for better vibration resistance
- Scientific and reasonable interface layout
- Double board design with diverse interfaces
Tổng quan sản phẩm
The IBOX-103-2L2C Embedded Mini PC features Intel® Core™ 6th to 10th generation processors and Intel® Celeron®, giving you more computing power and cost advantages. Dual-channel DDR4 provides up to 64 GB of memory and supports multiple displays via HDMI and DP. It is dust-proof, interference-resistant, and temperature-resistant. A rich set of I/O interfaces including 2LAN, 2COM, 4 USB3.0 and 4 USB2.0 are available to meet the requirements of most markets. Desktop mounting is easy, with an M.2 interface for Wi-Fi and a SIM card slot for expansion.
Thông số kỹ thuật
|
MODEL |
IBOX-103-2L2C |
|
Supported OS |
Win 7, Win 8, Win 10, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT |
|
CPU |
Model |
Intel® Core™ I5-6200U |
Intel® Core™ I5-8265U |
Intel® Celeron® 5205U |
Intel® Core™ I5-10210U |
|
RAM |
Type & No. |
1* DDR4 SO-DIMM Socket |
2* DDR4 SO-DIMM Socket |
2* DDR4 SO-DIMM Socket |
2* DDR4 SO-DIMM Socket |
|
Frequency |
2133 MHz |
2400 MHz |
2400 MHz |
2666 MHz |
|
Capacity |
Up to 32GB |
Up to 32GB |
Up to 64GB |
Up to 64GB |
|
Storage Devices |
SATA |
1* 2.5″ SATA3.0 Bay on board (6Gb/s) |
|
M.2 |
1* M.2 2280 M-key slot (SATA3.0 only) |
|
I/O INTERFACE |
COM |
2* RS232/485, DB9 connector |
|
Ethernet |
2* Intel i211 GbE LAN |
2* RTL 8111H GbE LAN |
|
USB |
4* USB 2.0; 4* USB 3.0 |
|
Video |
1* DP, support 4096×2304@60Hz, it can be changed to HDMI port, support 4096×2304@24Hz;
1* HDMI, support 4096×2304@24Hz |
|
Audio |
1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662 |
|
SIM |
1* External SIM card slot connected to Mini-PCIe |
|
Power supply |
12V DC; 1* DC Jack (5.5* 2.5mm) |
|
Other |
1* Auto-On Switch |
|
Extended
Capabilities |
Additional
Internal Interface |
1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0);
1* M.2 2230 E-key slot (PCIe+USB2.0, support WiFi+BT) |
|
Environment |
Operating Temperature |
-10 ~ 55 °C w/ 0.7m/s Airflow |
|
Storage Temperature |
-40 ~ 85 °C (-40~185 °F) |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Physical Characteristics |
Dimensions |
141* 62* 127.5mm (W* H* D) |
|
Net Weight |
1.2 KG |
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
Kích thước sản phẩm
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
|
Intel® Core™ I5-6200U |
Skylake |
2 |
4 |
2.80 GHz |
2.30 GHz |
3 MB Intel® Smart Cache |
15W |
DDR4 |
Intel® HD Graphics 520 |
|
Intel® Core™ I5-8265U |
Whiskey Lake |
4 |
8 |
3.90 GHz |
1.60 GHz |
6 MB Intel® Smart Cache |
15W |
DDR4 |
Intel® UHD Graphics 620 |
|
Intel® Celeron® 5205U |
Whiskey Lake |
2 |
2 |
/ |
1.90 GHz |
2 MB |
15W |
DDR4 |
Intel® UHD Graphics |
|
Intel® Core™ I5-10210U |
Comet Lake |
4 |
8 |
4.20 GHz |
1.60 GHz |
6 MB Intel® Smart Cache |
15W |
DDR4 |
Intel® UHD Graphics 620 |
Phụ kiện mua thêm
|
Optional Items |
Max Qty |
Description |
|
AI Acceleration Card |
1 |
13 TOPS, Connected by Mini-PCIe interface |
|
4G Module |
1 |
Connected by Mini-PCIe interface |
|
WiFi Module without AP mode |
1 |
Connected by Mini-PCIe interface or M.2 interface |
|
WiFi Module with AP mode |
1 |
Connected by Mini-PCIe interface |
|
Dual channel CAN-Bus Module |
1 |
Connected by Mini-PCIe interface |
Download
Datasheet
