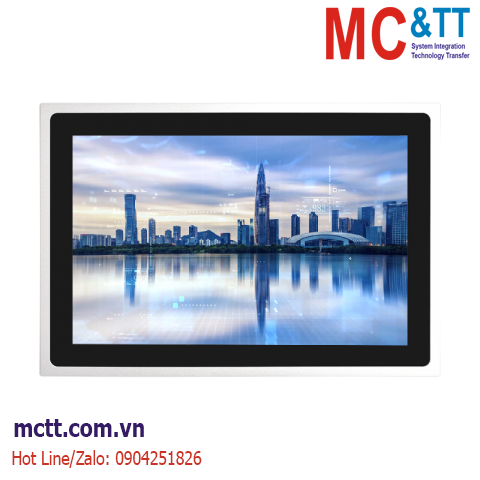

Máy tính công nghiệp màn hình cảm ứng 10.1 inch (2 Lan + 6 COM) MCTT MPPC-2L6C-11TH-10W
MPPC-2L6C-11TH-10W system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
MPPC-2L6C-11TH-10W belongs to the All-in-One series, which is powered by 11th Gen Intel Core/ Celeron CPU with Intel® Iris® Xe Graphics, supports up to 64GB DDR4-3200, and supports dual independent displays via HDMI and VGA. It has a built-in mSATA3.0 slot and SIM card slot for easy desktop installation. It is dust, interference and temperature resistant. Comprehensive connectivity features include 2LAN, 6COM, multiple USB ports in a compact fanless design for edge computing, micro media servers, kiosks, PoS, retail, home or office use.
Tính năng
- 11th Gen Intel Core/ Celeron CPU with Intel® Iris® Xe Graphics
- Ultra-thin design, overall thickness is under 60mm;
- Narrow bezel design bring the more compact overall size;
- Aluminum alloy cooling backshell , sealed and fanless system design, dustproof, anti-vibration and anti-interference;
- Rich I/O interface and expansion slot with 3* M.2, support SSD, WiFi+BT, 4G/5G
Thông số kỹ thuật
|
LCD Display |
Touchscreen |
|
Display Type |
10.1″ TFT LCD (LED backlight) |
Touchscreen Type |
Projected Capacitive |
Non-Touchscreen |
|
Resolution |
1280*800 |
Touchscreen Method |
Ten point |
– |
|
Luminance |
400 cd/m2 (Typ.) |
Surface |
6H |
6H |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR>=10) |
Durability |
– |
– |
|
Contrast Ratio |
800:1 (Typ.) ( Transmission ) |
Transparency |
85±3% |
>88% |
|
System |
|
CPU |
CPU Model |
Intel® Core™ i7-1195G7 |
Intel® Core™ i5-1135G7 |
Intel® Core™ i3-1115G4 |
|
Graphic |
Intel® Iris® Xe Graphics, Up to 96 EUs,1.3Ghz |
Intel® Iris® Xe Graphics, Up to 80 EUs,1.3Ghz |
Intel® UHD Graphics, up to 48 EUs, 1.25Ghz |
|
TDP |
12 ~ 28W |
|
RAM |
2* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 64GB |
|
Storage |
M.2 |
1* M.2 (NGFF) 2280 M-key Slot (support PCIex4 Gen 4 NVMe) |
|
Supported OS |
Win 8, Win 10; Win 10 IoT, Ubuntu, Debian, Kali, CentOS, etc. |
|
I/O Interface |
COM |
3 * RS232 (COM1/2/3, Header, Full lanes);
2 * RS232/TTL (COM4/5, Header, 3 lanes);
1 * RS232/RS485/TTL (COM6, Header, 3 lanes)
(COM4/5/6 RS232/TTL sel by res, support RS232 by default. COM4/5/6 must be used at the same mode) |
|
Ethernet |
2* Intel® GbE LAN (10/100/1000 Mbps, RJ45) |
|
USB |
6* USB3.0 |
|
Video |
2* HDMI(TYPE-A), max resolution up to 4096*2160@30Hz |
|
Audio |
1 * Line-Out + MIC 2in1 3.5mm Jack; With 7.1 channel HD Audio Codec Realtek ALC897; 1 * Amplifier Header |
|
SIM |
1* Built-in nano-SIM Card Slot connected to M.2 B-key slot |
|
Power Supply |
12V DC; 1* DC 12V Power Input Thread Connector
(Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)) |
|
Other |
1* 8-bit GPIO header with 4 inputs and 4 outputs (optional) |
|
Expansion |
1* M.2 (NGFF) E-key Slot (PCIe+USB2.0, Support Wi-Fi+BT, 2230)
1* M.2 (NGFF) B-key Slot (PCIe/USB3.0+USB2.0, Support 5G+4G/3G, with 1* nano-SIM Card Slot, 3052) |
|
Operating Temperature |
Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow) |
|
Storage Temperature |
Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
Dimensions |
259.6*177.6*50.5 mm |
|
Net Weight |
2.2 KG |
|
Mounting |
Panel mount kit (VESA mount kits optional) |
Kích thước sản phẩm
Bộ xử lý CPU
|
CPU |
Code Name |
Total Cores |
Total Threads |
Max Turbo Frequency |
Base Frequency |
Cache |
TDP |
Memory Types |
Integrated Graphics |
|
Intel® Core™ I7-1195G7 |
Tiger Lake |
4 |
8 |
5.0 GHz |
2.90 GHz |
12 MB Intel® Smart Cache |
12-28W |
DDR4 |
Intel®Iris Xe Graphics; 96Eus |
|
Intel® Core™ I5-1135G7 |
Tiger Lake |
4 |
8 |
4.20 GHz |
2.40 GHz |
8 MB Intel® Smart Cache |
12-28W |
DDR4 |
Intel®Iris Xe Graphics; 80Eus |
|
Intel® Core™ I3-1115G4 |
Tiger Lake |
2 |
4 |
4.10 GHz |
1.70 GHz |
4 MB Intel® Smart Cache |
12-28W |
DDR4 |
Intel®Iris Xe Graphics; 48Eus |
Thông tin đặt hàng
|
Part no. |
Description |
|
MPPC-2L6C-11TH-10W-CT-I3 |
10.1" TFT LCD, 1280*800, Capacitive Touch, with Intel® I3-1115G4, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter |
|
MPPC-2L6C-11TH-10W-CT-I5 |
10.1" TFT LCD, 1280*800, Capacitive Touch, with Intel® I5-1135G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter |
|
MPPC-2L6C-11TH-10W-CT-I7 |
10.1" TFT LCD, 1280*800, Capacitive Touch, with Intel® I7-1195G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter |
|
MPPC-2L6C-11TH-10W-NT-I3 |
10.1" TFT LCD, 1280*800, Non-Touch, with Intel® I3-1115G4, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter |
|
MPPC-2L6C-11TH-10W-NT-I5 |
10.1" TFT LCD, 1280*800, Non-Touch, with Intel® I5-1135G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter |
|
MPPC-2L6C-11TH-10W-NT-I7 |
10.1" TFT LCD, 1280*800, Non-Touch, with Intel® I7-1195G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter |
Tài liệu kỹ thuật
Datasheet
