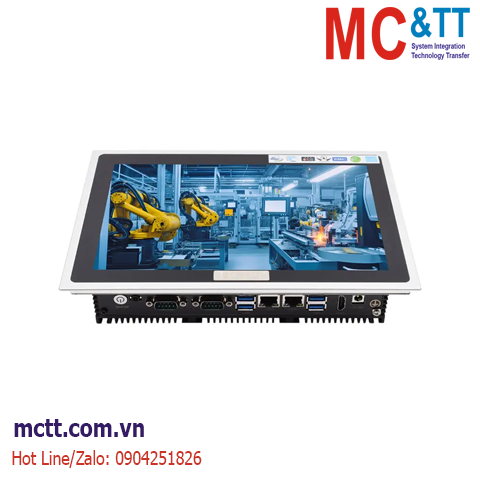

Máy tính công nghiệp màn hình cảm ứng 10.1 inch (2 Lan + 2 COM) MCTT MPPC-2L2C-10W
This industrial panel PC with 2 LAN and 2 COM ports is designed for industrial HMI and automation systems requiring stable serial and Ethernet communication. The 10.1-inch widescreen TFT LCD provides clear visualization for control interfaces, while the fanless aluminum enclosure ensures reliable operation in dusty and vibration-prone environments.
As an industrial panel PC with 2 LAN 2 COM configuration, it supports multiple Intel® Core™ and Celeron® processors, flexible memory and storage options, and wide OS compatibility. The compact all-in-one design integrates display, computing, and I/O, making it suitable for factory automation, machine control, and industrial monitoring applications.
Tính năng
- Intel® Celeron® J1900
- 10.1-inch widescreen TFT LCD with 1280×800 resolution, suitable for horizontal HMI layouts.
- Dual Gigabit Ethernet ports for reliable connection to PLCs, controllers, and industrial networks.
- 2 COM ports supporting RS-232/485
- Aluminum alloy cooling backshell, sealed and fanless system design, dustproof, anti-vibration and anti-interference
- Supports panel mount and VESA mount installation for industrial automation and machine control.
Thông số kỹ thuật
|
LCD Display
|
Touchscreen
|
|
Display Type
|
10.1″ TFT LCD (LED backlight)
|
Touchscreen Type
|
Projected Capacitive
|
Non-Touchscreen
|
|
Resolution
|
1280*800
|
Touchscreen Method
|
Ten point
|
–
|
|
Luminance
|
400 cd/m2 (Typ.)
|
Surface
|
6H
|
6H
|
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR>=10)
|
Durability
|
–
|
–
|
|
Contrast Ratio
|
800:1 (Typ.) ( Transmission )
|
Transparency
|
85±3%
|
>88%
|
|
System
|
|
CPU
|
CPU Model
|
Intel® Celeron® J1900
|
|
Graphic
|
Intel® HD Graphics
|
|
TDP
|
10W
|
|
RAM
|
SO-DIMM
|
1 * SO-DIMM Socket, support DDR3L-1333/1600 MHz
|
|
Maximum Capacity
|
up to 8GB
|
|
Storage
|
1* mSATA2.0 slot on board (3Gb/s)
|
|
Supported OS
|
Win 7, Win 8, Win 10, WES 7; Win 10 IoT, Ubuntu, CentOS, etc.)
|
|
I/O Interface
|
COM
|
2* RS232/485 (COM1-2, DB9)
|
|
Ethernet
|
2* Realtek 8111H GbE LAN
|
|
USB
|
3* USB2.0, 1* USB3.0
|
|
Video
|
1* HDMI, 1920x1200@60Hz
1* VGA (optional)
|
|
Audio
|
1*SPK header; With 5.1 channels HD Audio Codec Realtek ALC662
|
|
SIM
|
1* Built-in SIM card slot connected to Mini-PCIe
|
|
Power Supply
|
12V DC; 1* Terminal Block (2-Pin, 5.08mm)
|
|
Other
|
1* 8-bit GPIO header (optional)
1* Remote Switch Terminal (2-Pin, 3.81mm)
|
|
Expansion
|
1* Full Size Mini-PCIe
|
|
Operating Temperature
|
Non-Touch: -10~50°C; Capacitive: -10~50°C; (w/ 0.7m/s Airflow)
|
|
Storage Temperature
|
Non-Touch: -20 ~ 60°C; Capacitive: -20 ~ 60°C
|
|
Relative Humidity
|
40 °C @ 95%, Non-Condensing
|
|
Dimensions
|
259.6*177.6*50.5 mm
|
|
Net Weight
|
2.2 KG
|
|
Mounting
|
Panel mount kit (VESA mount kits optional)
|
Kích thước sản phẩm
Bộ xử lý CPU
|
CPU
|
Code Name
|
Total Cores
|
Total Threads
|
Max Turbo Frequency
|
Base Frequency
|
Cache
|
TDP
|
Memory Types
|
Integrated Graphics
|
|
Intel® Celeron® J1900
|
Bay Trail
|
4
|
4
|
–
|
2.00 GHz
|
2 MB L2 Cache
|
10W
|
DDR3
|
Intel® HD Graphics
|
Thông tin đặt hàng
|
Part no.
|
Description
|
|
MPPC-2L2C-10W-CT
|
10.1" TFT LCD, 1280*800, Capacitive Touch, with Intel® Celeron® J1900, 2*GLAN, 4*USB, 2*COM, 1*HDMI, Power Adapter
|
|
MPPC-2L2C-10W-NT
|
10.1" TFT LCD, 1280*800, Non-Touch, with Intel® Celeron® J1900, 2*GLAN, 4*USB, 2*COM, 1*HDMI, Power Adapter
|
Tài liệu kỹ thuật
Datasheet
